Note: This is analog to digital audio converter, it will not work in the other way. If you need digital to analog audio converter, Please check Here
This converter supports Linear PCM (stereo) audio output signal only.
Compatible with: TV, DVD Player, Sky box, STB, Blue-Ray player, YouView Box, All Devices with R/L or 3.5mm Jack headphone output.
Ideal for interfacing between analog audio/video devices with modern digital

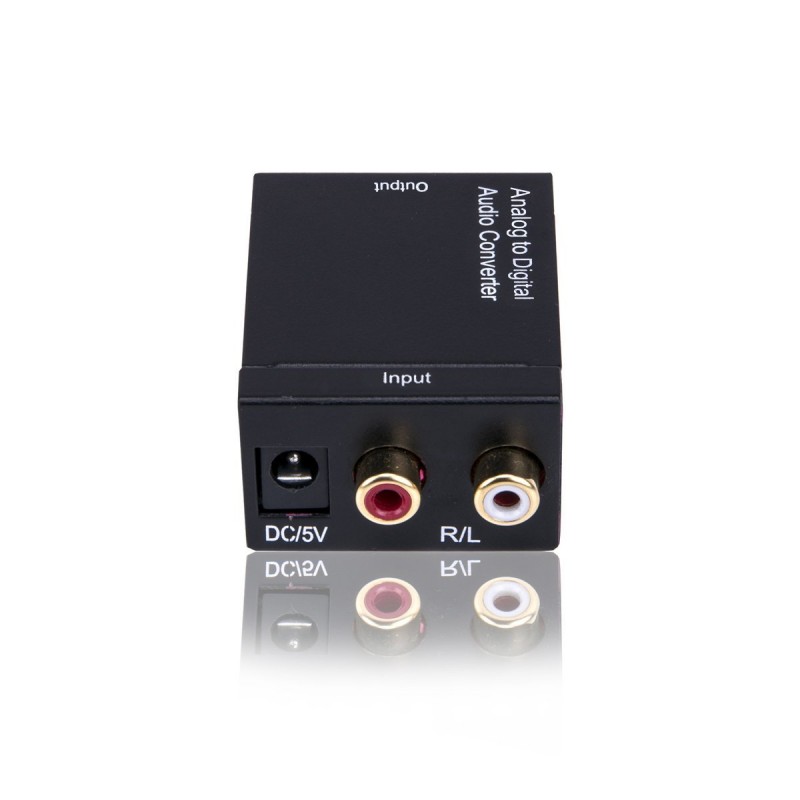

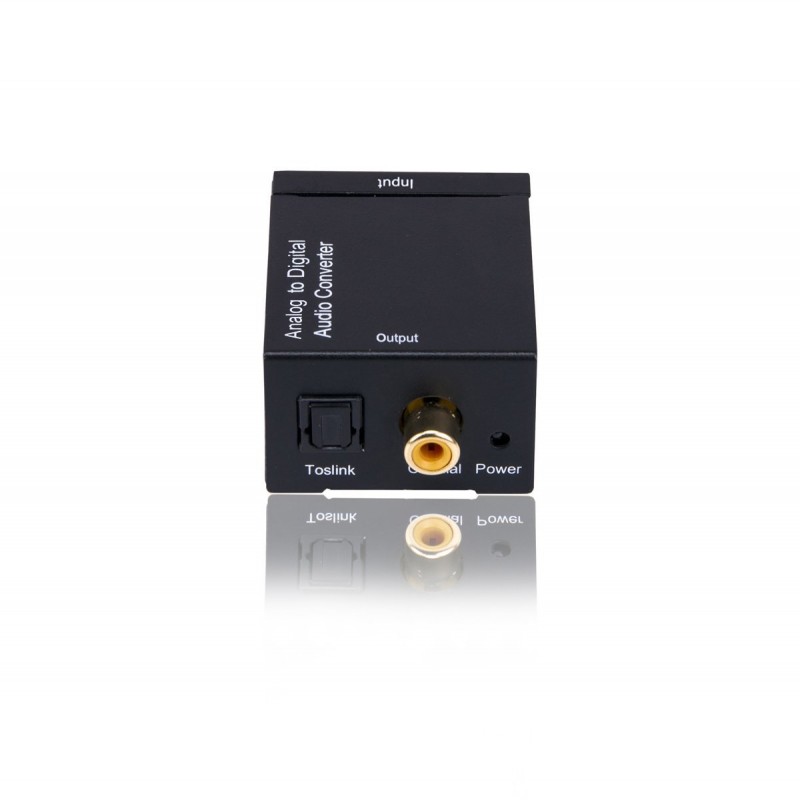

This Analog Audio to Digital Converter has a set of right/left RCA analog audio input and a 3.5mm Jack stereo input. It will simultaneously convert the analog audio into Coax and Optical (Toslink) Digital signals. You can connect either or both outputs to an appropriate digital audio input on a TV, AV receiver, or anything else.
This Analog Audio to Digital Converter has a set of right/left RCA analog audio input and a 3.5mm Jack stereo input. It will simultaneously convert the analog audio into Coax and Optical (Toslink) Digital signals. You can connect either or both outputs to an appropriate digital audio input on a TV, AV receiver, or anything else.
The converter has a digital sampling rate of 48 kHz and produces an LPCM stereo audio output signal.
Just get the Analog to Digital Audio Converter and bring your old equipment into the digital age!
How it works:
- Simply plug in your analog audio source into the RCA or 3.5mm jacks input ports, then connect your digital receiving device to your choice of either coaxial or optical digital output.
- Both digital outputs may also be used simultaneously. Power-cycle all connected equipment, and you will be enjoying digitally converted audio from your analog source at the receiving device.
- The digital output signals will be a 2 channel uncompressed LPCM (linear pulse code modulation) with sampling rate at 48KHz.
- Very user-friendly, easy to learn, and easy to install.
- Converts analog L/R RCA and 3.5mm stereo headphone input to SPDIF Optical or Coaxial digital PCM audio .
- Supports 48 kHz output sampling frequency.
- Ultra low jitter and high fidelity design using new 192kHz Digital Audio Receiver & 24-bit 192kHz ,192KHzDAC Chipset.
- Supports uncompressed 2-channel LPCM digital audio signal output.
- Provides electromagnetic-noise-free transmission
- USB power option - use USB port to save one AC outlet, you can also use your phone charger to power it. We offer a USB power cable(Power adapter is not included), you can use it to connect to your PC, TV, or 5V USB power supply.
- Input Audio: L/R audio + 3.5mm Jack stereo audio
- Output Audio: Coaxial + Toslink digital audio signals
- Input audio connector: 2 x RCA(R/L)
- Output audio connector: 1 x Toslink, 1 x RCA (Coaxial)
- Frequency Response: < +/- 0.5dB 20Hz-20kHz
- Crosstalk: < -85dB
- RMS Level (CH1 / CH2): 1.0 Vrms analog input at the -7.4 dBFS digital output level
- Power input: 5V DC(We offer a power USB cable)
- Dimensions: 76 x 56x 22mm
- Weight: 77g
| Manufacturer | No |
|---|
