Features:
-
Outputs: composite analog and two reclocked SDI
-
8-bit input; 10-bit encoder; 10-bit DAC
-
Built-in color bar generator
-
Automatic configuration NTSC/PAL
-
Adjustable output gain
-
Compact rugged steel case with mounting tabs
-
Externally accessible configuration override switches
-
External LED with status of power and input signal

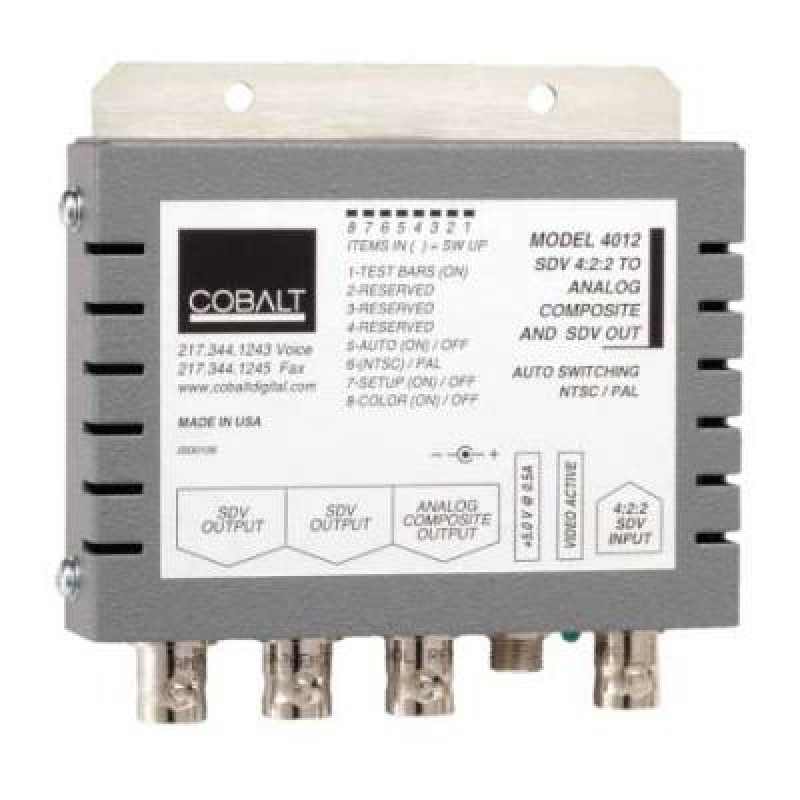

Diagram:
Specifications:
Input
270 Mbit SDI, SMPTE 259M-C
Output
Two reclocked SDI and one composite analog NTSC (525/60) SMPTE 170M PAL (625/50)
Power
+5V DC @ 3 watts
Requires Power Supply PS4 or PS5
Size
3.7\" x 2.75\" x 0.75\" (94x70x19mm)
