Home >
Accessories >
HDMI to SDI Converter

More Views

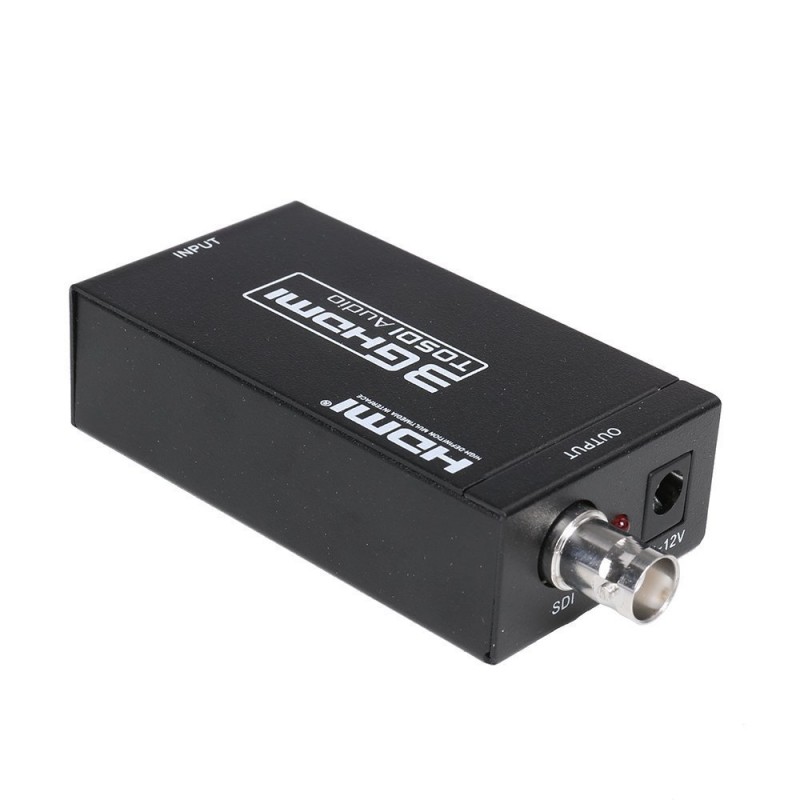

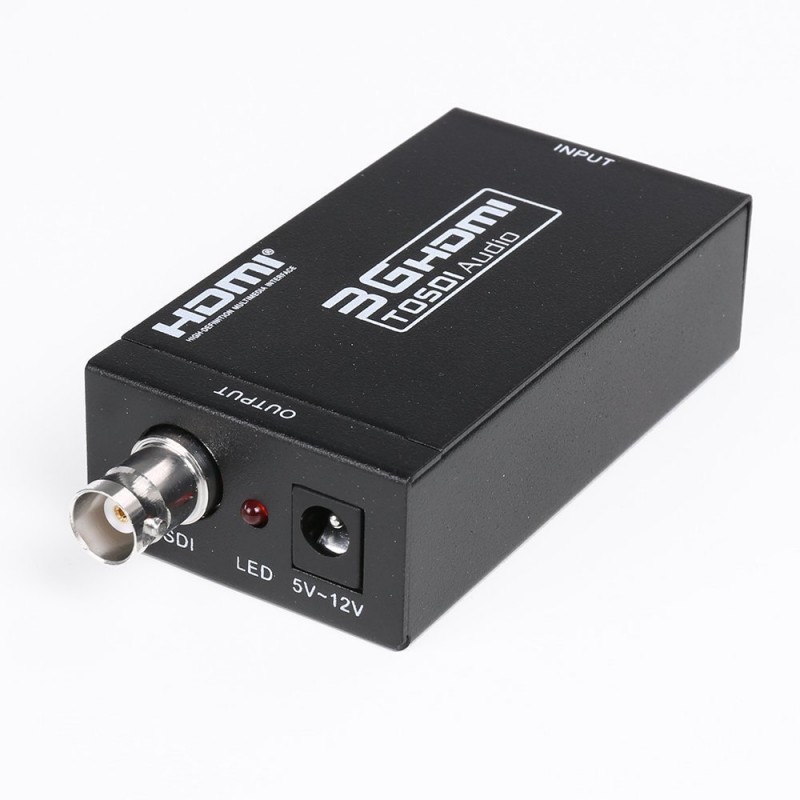

HDMI to SDI Converter

Availability: In stock

Only 2 left

৳5,800.00

Quick Overview

⚫ Show HDMI source on SDI display. SDI interface compatible with bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.
⚫ HDMI input timings supported: 480i@59.94, 576i, 720p@50/59.94/60, 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60.
⚫ 480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s). 720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)
⚫ 1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
⚫ Supports SDI output distance 100 meters (3G-SDI) for maxium, 200 meters (HD-SDI) for maxium, or 300 meters (SD-SDI) for maxium.

Qty:

Be the first to review this product

Email to a Friend

Product Description:

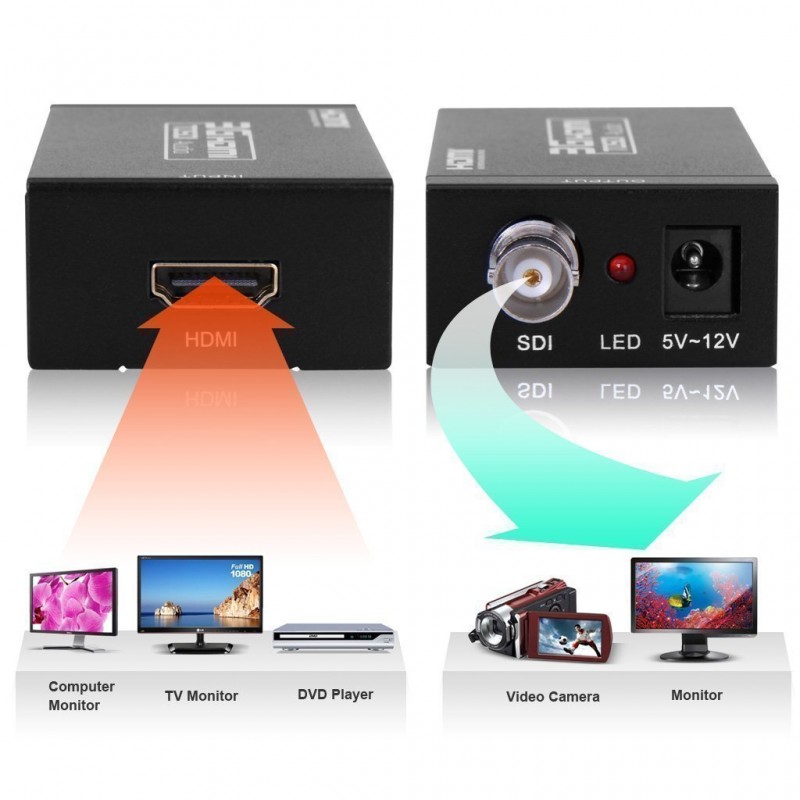

The 3G HDMI to SDI Converter enables HDMI signals to be shown on SDI display, ensuring high bit rates of 2.970 Gbit/s, without compromising any high resolution signal/any loss. For professionals this means that it is now easier to convert your high HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

Specifications:

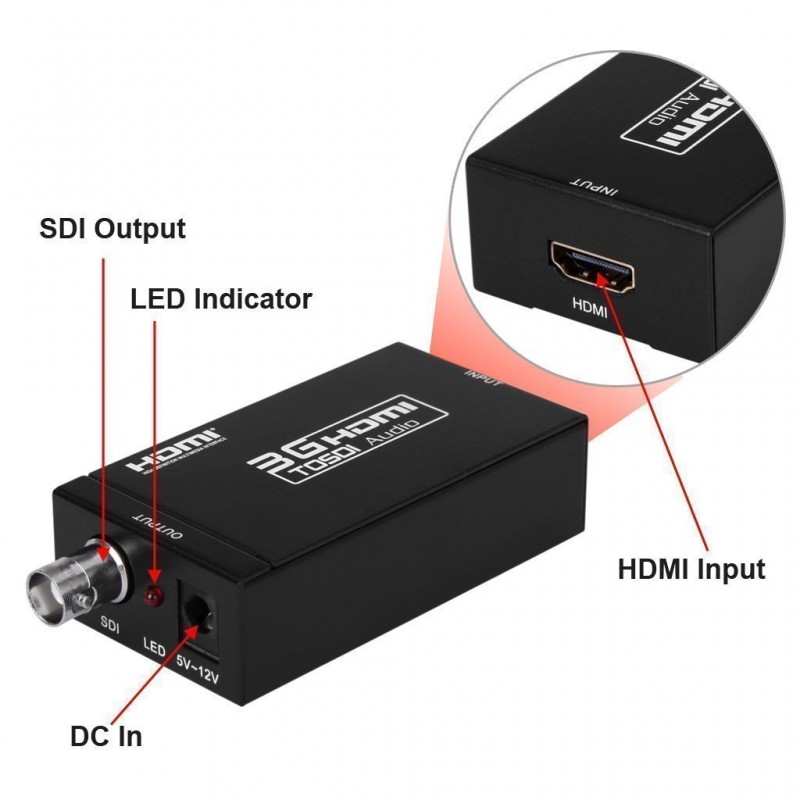

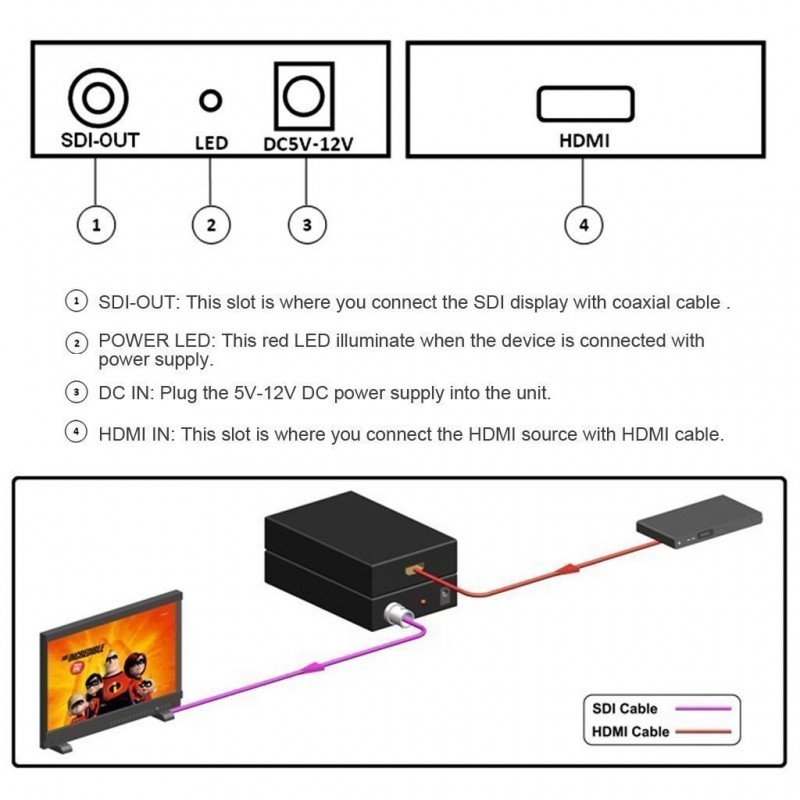

1. Input Port: 1 x HDMI
2. Output port: 1x SDI(SDI/HD-SD/3G-SDI)
3. SDI Transmission Rate: 2.970 Gbit/s and 2.970/1.001 Gbit/s
4. In/Output Resolution: 480i, 576i, 720p@50/59.94,60 ,1080i@50/59.94/60 1080p@23.97/24/25/29.97/30/50/59.94/60
5. Power Supply: DC 5V -12V
6. ESD Protection Human body model: ±8kV (air-gap discharge) ,±4kV (contact discharge)
7. Dimension: 80mm x 41mm x 25 mm
8. Power Consumption (Max):5W

Package Included:
1x S-Echoing 3G HDMI to SDI Converter
1x DC Power Adaptor
1x User Manual
