AV to HDMI Converter

Introduction:
It converts RCA (AV, composite, CVBS) signals into HDMI signals so you can watch your video on a modern TV with HDMI ports. The analog to digital conversion in this module employs 10 bits maximal 162MSPS sampling, black/white level expansion, color transition improvement, dynamic range expansion, blue stretch , auto-detect and auto-convert the composite signal to 1080p(60HZ) output. Making video come alive, delivering the sharpest, most realistic HD visuals available

Specifications:
1. Input ports: 1xRCA (Yellow, White, Red), USB power
2. Output ports: 1xHDMI(standard)
3. NTSC/PAL compatible
4. Composite input: PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N
5. HDMI output: 1080p/60Hz, 720p/60Hz

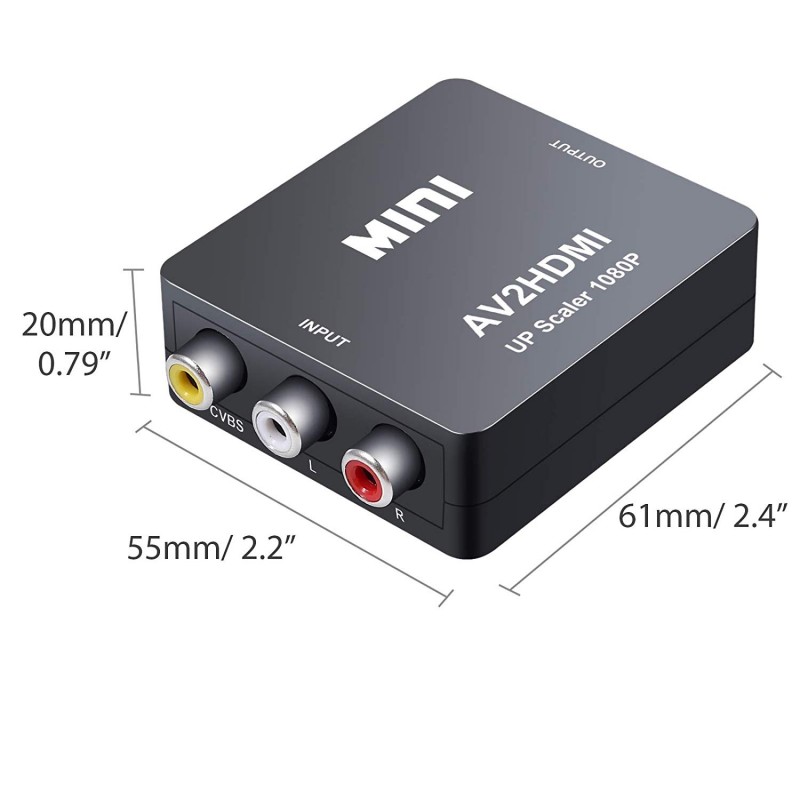

6. Dimensions (mm): 66(D)x55(W)x20(H)
7. Net Weight (g): 40g
8. Power: USB Port

Features:
No need to install drivers, portable, flexible, plug and play.
Support PAL, NTSC3.58, NTSC4.43, SECAM, PAL/M, PAL/N standard TV formats input.
Output the audio synchronization with video.
Can be displayed on Moniter/ TV with 1920x1080@60Hz High bandwidth capability

Please NOTE:
1. May experience less than three second lag. Will not convert audio only. Important:For converter to function properly all cables must be connected and in use (yellow: video, white: left audio, and red: right audio).Supported audio format: 2 channel analog audio, does not support 3D
2.Video signal transfer only, can't improve the video quality, Pls remember plug DC5V/1A power supply
3. Pls remember connecting usb power cable before using, a phone adaptor can do the job

Package content:
1 x AV to HDMI Converter
1 x USB Cable
1 x User Manual
