Features
⚫ Cost-effective: Competitive pricing, outstanding performance

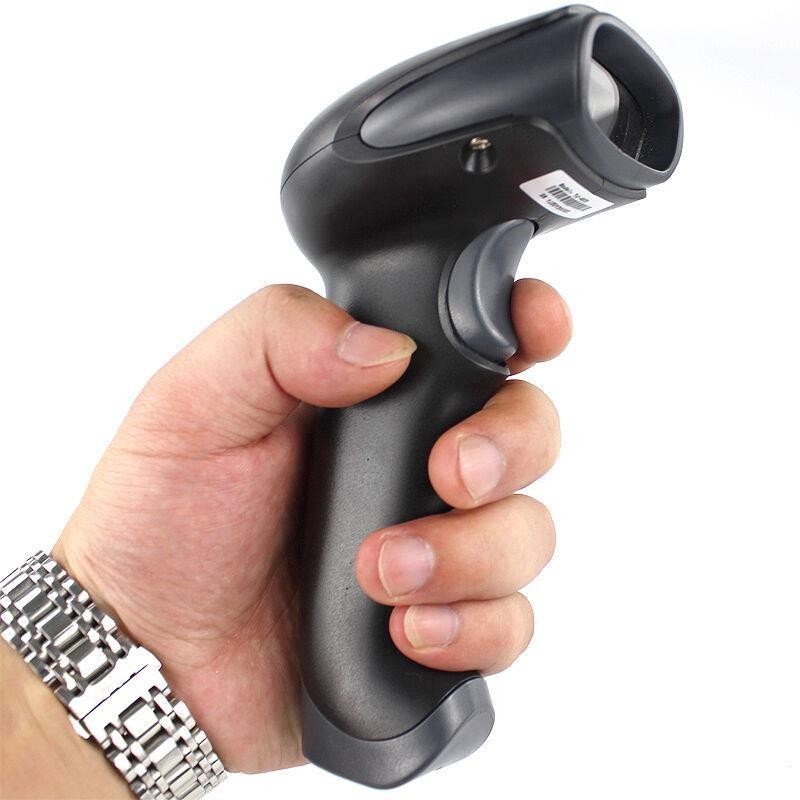

⚫ Compact, lightweight, user-friendly design: Fast and accurate scanning, elegant and ergonomic design allows for a natural and comfortable grip
⚫ Versatile scanning modes: : Supports both manual and presentation scanning modes with automatic object detection and scanning
⚫ Advanced decoding software: Cutting-edge decoding technology, able to scan both 1D and 2D barcodes quickly and accurately
⚫ Reliable data capture ability: Supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
⚫ Future-proof investment: Protects your future investment with 2D capability at an affordable price meeting both current and future barcode scanning needs
Specification:
Mechanical
Dimensions (length x width x height): 170mm x 66mm x 85mm
Weight: 120g
Electrical
Input Voltage: 4 ~ 5.5 V DC
Operating Power: 2W; 400 mA @ 5V - typical
Standby Power: 0.45w, 90mA@ 5V - typical
DC Power: Class2; 5.2VDC@1°
EMC: EN55022, EN55024 class B
LED Safety Certification: IEC62471
CB: IEC60950
Comprehensive Certification: GOST-R (Russia), CE
Environmental
Operating Temperature: 0°C - 40°C
Storage Temperature: -40°C - 60°C
Humidity: 5% - 95% relative humidity, non-condensing
Light Levels: 0 - 100,000LUX
Drop: designed to withstand falls from a height of up to 1.0m
Environmental Sealing: Sealed to resist airborne particulate contaminants
IP Level: IP40
Motion Tolerance: 100mm per second, 13 mil UPC
Performance
Light Source: white LED
Sight: Red LED, 617nm
Visual Indicators: Green = decoding successful; Red = decoding failed
System Interface: KBW, USB
Scan Pattern: Image
Scan Angle: Pitch ± 70 °, Tilt ± 60 °, Rotation ± 180 °
Print Contrast: Minimum 35% contrast
Decoding: supports most standard 1D and mainstream 2D symbology, as well as those on electronic screens (such as mobile phones)
| Typical Performance |
| Narrow Width |
Depth of Field |
| 5 mil Code39 |
42mm - 111mm |
| 13 mil UPC-A |
36mm - 261mm |
| 20 mil Code 39 |
41mm - 361mm |
| 6.7 mil PDF417 |
41mm - 106mm |
| 10mil Data Matrix |
41mm - 111mm |
| 15mil Data Matrix |
30mm - 170mm |
| 20mil QR |
31mm - 211mm |
| Resolution: 4 mil |
