Bosch 1000 CCSD-CU Conference Microphone (Control Units)

Premium Graded Conference System Control Unit

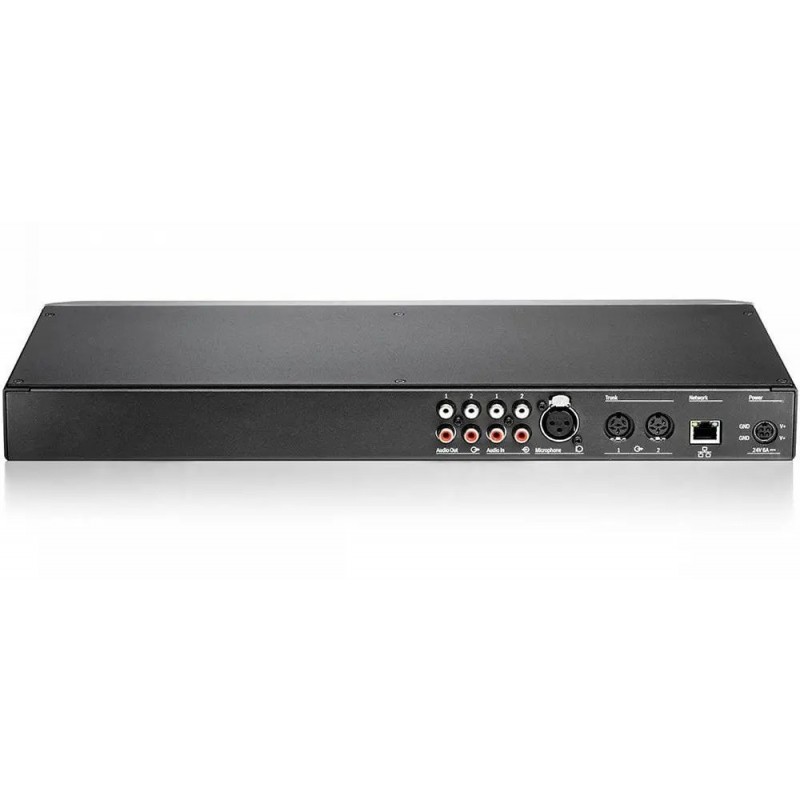

The CCSD-CU Control Unit from Bosch is the main component of the CCS 1000 Digital Discussion System. It supplies DC power to all connected discussion devices while monitoring and controlling the discussion system. Touch-button control allows for easy configuration and operation of the unit while intuitive LED indicators clearly display current system settings. Conveniently positioned ports at the rear of the unit enable peripheral equipment, such as audio devices and HD conference domes, to be connected to the discussion system. Basic and advanced system settings can be easily viewed and changed via the unit’s intuitive web browser interface.

Plug-and-Play Functionality

The plug-and-play functionality of the Control Unit allows discussion devices and system cameras to be conveniently connected to and removed from the system as required. A power down or restart of the system is not necessary, which makes for fast installation and reconfiguration.

Web Browser Control

Basic and advanced system settings, including microphone management and recording functions, can be easily viewed and managed/configured by using a web browser in combination with a tablet, laptop, or desktop computer. Changes made in the web browser interface are automatically updated in the Control Unit and vice versa. Via the web browser, the Control Unit and connected devices can be set to be automatically shut down for energy saving purposes. Separate login rights are available for operators and technicians to prevent unauthorized access to system settings.

Open Microphone Control

The maximum number of microphones that can be activated by pressing the microphone buttons on the discussion devices can be selected with the “Number of Open Microphones” (NOM) button on the Control Unit. A maximum of four microphones can be selected on the Control Unit. This can be further extended to 10 microphones in the web browser.

Discussion Control

One of the following microphone modes can be selected by pressing the Microphone Mode button on the front of the Control Unit:

Open mode: participants can speak by pressing their microphone buttons. When the maximum number of open microphones is reached, the next participant that presses his microphone button is added to a waiting list. The first participant in the waiting list is allowed to speak when an activated microphone is disabled. Override mode: participants can override each other by pressing their microphone buttons. When the maximum number of open microphones is reached, the next participant that presses his microphone button will deactivate the microphone that has been activated for the longest time (the chairperson’s microphone is not included in the number of open microphones and, therefore, cannot be overridden by a participant). Voice Activation mode: participants can activate their microphones by speaking into them. A microphone can be temporarily muted by pressing and holding down the microphone button. Push-to-Talk (PTT) mode: participants can speak by pushing and holding in their microphone buttons. The microphone is deactivated when the microphone button is released. The maximum number of participants that can speak is determined by the number of open microphones.

Interface for Peripheral Equipment

The Control Unit enables the following equipment to be connected to the CCS 1000 Digital Discussion System:

System cameras: for giving a clear visual overview of the proceedings. A maximum of six Bosch HD Conference Dome cameras can be connected to the system with native support (the camera presets can be configured in the web browser). External wired or wireless microphone: to allow a guest speaker or an audience to participate in a discussion. Sound reinforcement system: for transmitting the proceedings to an audience in the same room or an adjacent room. Audio equipment: for broadcasting music through the loudspeakers of the discussion system. External audio processor: for modifying the floor signal distributed to the participant loudspeakers and headphones (i.e. equalizing). Telephone coupler: to allow a remote participant to join a discussion via a telephone/video connection. External recorder: for recording and playing back discussions. Computer (connected via micro USB connector at rear of Control Unit): for transferring recordings (discussions) from the internal memory of the Control Unit.

Features

Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices to a single Control unit (the system can be expanded to a maximum of 245 Discussion Devices by using Extension Units CCSD‑EXU) Intuitive web browser interface control for advanced configuration and control On-board support for automatic HD camera control Touch‑button control allows for easy configuration and operation of the unit, while intuitive LED indicators give a clear indication of the system settings Connections at the rear of the unit enable peripheral equipment to be connected such as audio equipment, Ethernet switches, video switches, HD Conference Domes (ONVIF protocol compatible), and PC or laptop

Specifications
Supply voltage Adaptor 100 to 240 VAC, 50/60 Hz

Current Consumption voltage Adaptor 1.9 A (100 VAC) to 1 A 240 (VAC)

DC voltage Control Unit 24 V, 6.0 A

Maximum number of Discussion Devices for Control Unit (without Extension Unit) 40 Discussion Devices per trunk 80 Discussion Device in total 24 V, Max 5.2 A (short-circuited protected)

Discussion Device loudspeakers volume control 15 steps of 1.5 dB (starting from -10.5 dB)

Limit threshold level to unit 12 dB above nominal level

Gain reduction due to number of open microphones (NOM) 1/SQRT (NOM)

Sample rate 44.1 kHz

Frequency response 30 Hz to 20 kHz

Ethernet speed 1 Gb/s

Nominal input (85 dB SPL) < 0.5%

Max. input (110 dB SPL) < 0.5%

XLR nominal microphone input -56 dBV

XLR maximum microphone input -26 dBV

RCA nominal input -24 dBV (+/- 6 dB)

RCA maximum input +6 dBV

S/N > 93 dBA

Frequency response 30 Hz to 20 kHz

THD <0.1%

RCA nominal output -24 dBV (+6/- 24 dB)
