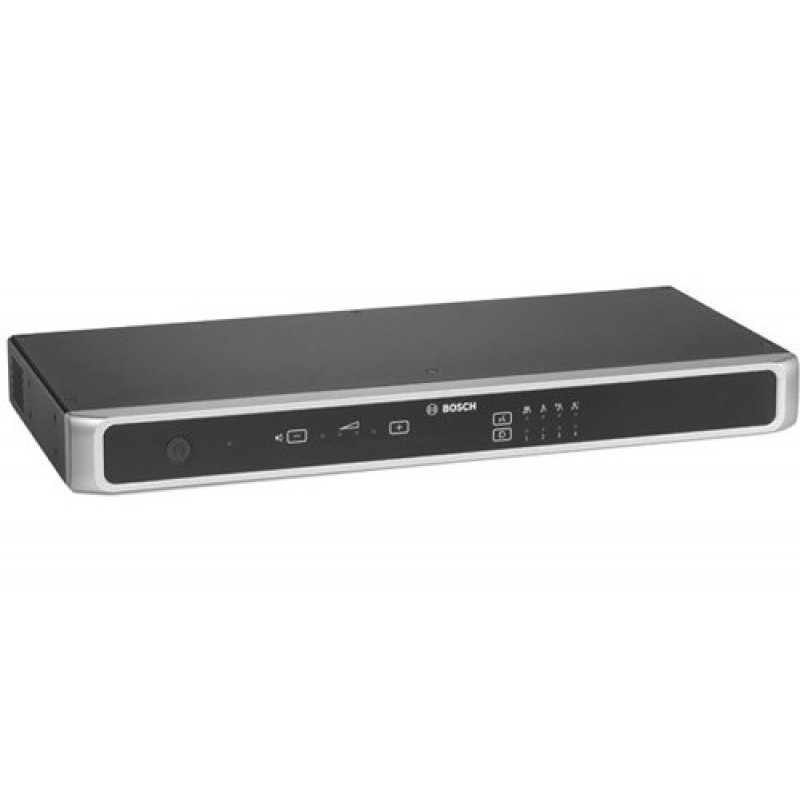

Bosch 1000 CCSD-CURD Conference Microphone (Control Units)

More Views

Bosch 1000 CCSD-CURD Conference Microphone (Control Units)

Availability: In stock

Only 1 left

৳279,000.00

Quick Overview

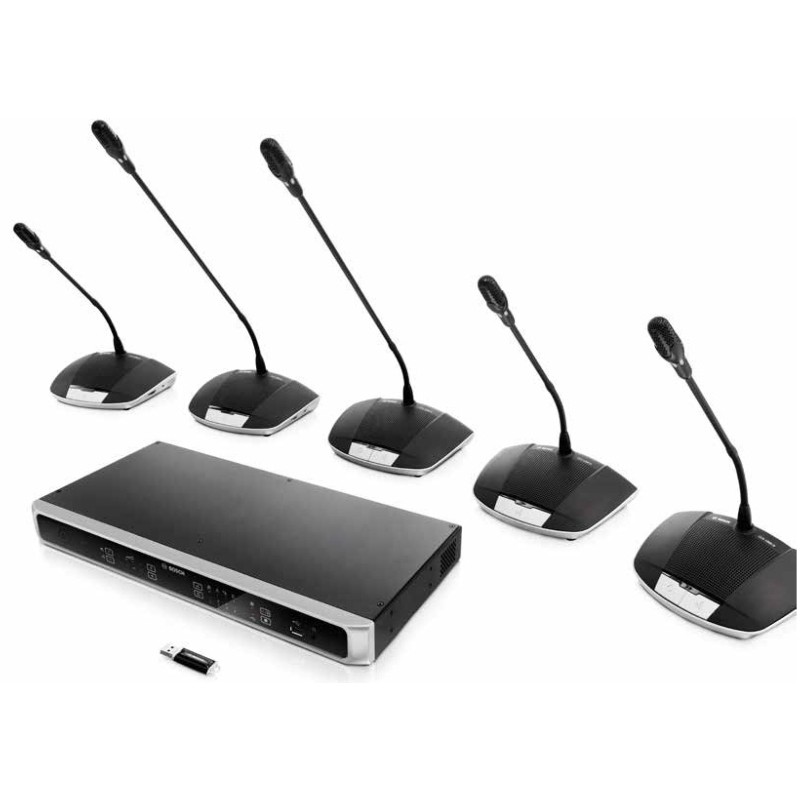

➫ Plug-and-play functionality for quick and easy connection of up to 80 Discussion Devices
➫ Intuitive web browser interface control for advanced configuration and control
➫ Built‑in MP3 recorder with internal memory and USB recording
➫ Built‑in Digital Acoustic Feedback Suppression (DAFS) for ensuring superior speech intelligibility
➫ On-board support for automatic HD camera control

Qty:

Be the first to review this product

Email to a Friend

Key Specifications:

Nominal input (85 dB SPL)	< 0.5%
Max. input (110 dB SPL)	< 0.5%

XLR nominal microphone input	-56 dBV
XLR maximum microphone input	-26 dBV
RCA nominal input	-24 dBV (+/- 6 dB)
RCA maximum input	+6 dBV
S/N	> 93 dBA
Frequency response	30 Hz to 20 kHz
THD	<0.1%

RCA nominal output

-24 dBV (+6/- 24 dB)

Supply voltage Adaptor	100 to 240 VAC, 50/60 Hz
Current Consumption voltage Adaptor	1.9 A (100 VAC) to 1 A 240 (VAC)
DC voltage Control Unit	24 V, 6.0 A
Maximum number of Discussion Devices for Control Unit (without Extension Unit)	40 Discussion Devices per trunk 80 Discussion Device in total 24 V, Max 5.2 A (short-circuited protected)
Discussion Device loudspeakers volume control	15 steps of 1.5 dB (starting from -10.5 dB)
Limit threshold level to unit	12 dB above nominal level
Gain reduction due to number of open microphones (NOM)	1/SQRT (NOM)
Sample rate	44.1 kHz
Frequency response	30 Hz to 20 kHz
Ethernet speed	1 Gb/s
