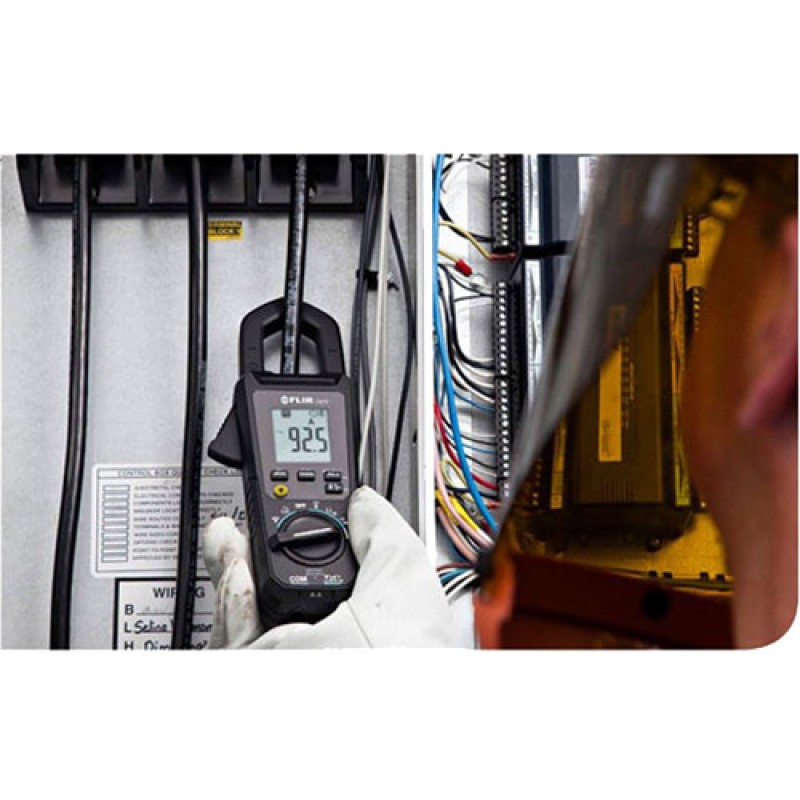

The CM74 RMS Clamp Meter with VFD Mode from FLIR gives you better access to wiring in hard-to-reach places and provides the measurement capabilities you need for advanced troubleshooting. Made with a narrow jaw and high-powered LED worklights, the CM74 makes it easier to take measurements in dark, crowded panels and cabinets. The clamp meter supports Autoranging, True RMS Voltage, and Current, LoZ, Inrush, and VFD modes. When used in VFD mode, it filters variable frequency drive signals and provides accurate voltage and frequency measurements. When used in LoZ mode, the clamp meter eliminates ghost voltage readings associated with long-run applications.
Better clamp access and portability.
Take measurements in hard-to-reach places, and carry the clamp wherever you go
- Made with a narrow jaw for easy access to wiring in crowded panels and cabinets
- Slim clamp design makes it convenient to carry in your back pocket
- Dual bright high-powered LED worklights guide you to your target in poor lighting conditions
All the electrical features you need.
Tackle modern challenges, get accurate readings
- Advanced electrical features including: True RMS, LoZ, VFD Mode (CM74 only), Inrush (CM74 only), Smart Diode with Disable

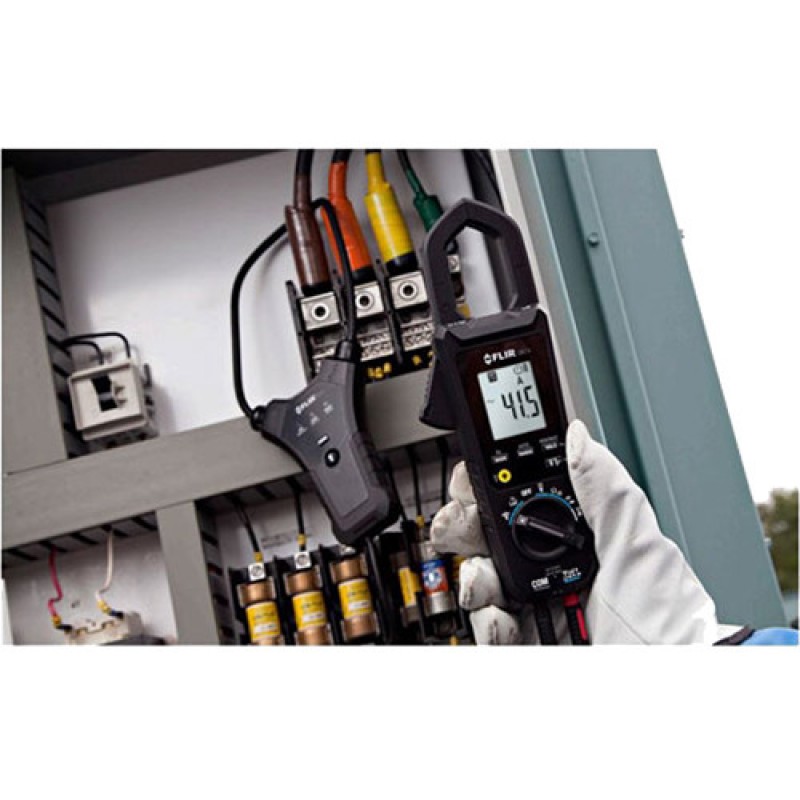

- Expandable to 3000A AC with TA72 & TA74 Flex Clamp Accessories (sold separately)
- Min / Max, Hold and Auto Power Off with Disable
Engineering you can have confidence in.
Built rugged, and includes accessories to make troubleshooting easier
- Premium gold-tipped silicone test lead accessories included
- Large digit LCD display with bright backlight
- Rubberized double molded hand grips reduce slippage
Specifications:
| Technical Summary | MAX Range | Basic Accuracy | |
| DC Voltage: | 1000V | ±1.0% | |
| AC Voltage: | 1000V | ±1.0% | |
| VFD AC Voltage: | 1000V | ±1.0% | |
| LoZ Mode AC Voltage: | 1000V | ±1.0% | |
| LoZ Mode DC Voltage: | 1000V | ±1.0% | |
| DC Current: | 600.0A | ±2.0% | |
| AC Current: | 600.0A | ±2.0% | |
| VFD AC Current: | 600.0A | ±2.0% | |
| Inrush AC Current: | 600.0A | ±3.0% | |
| Inrush Current threshold: | Min 0.5A, Integration Time 100ms | - | |
| Frequency: | 60.00kHz | ±0.1% | |
| Resistance: | 6000Ω | ±1.0% | |
| Continuity: | 600.0Ω | ±1.0% | |
| Capacitance: | 1000µF | ±1.0% | |
| Diode: | 1.5V | ±1.5% | |
| General Information | |||
| Display Counts: | 6,000 | ||
| Jaw Opening: | 1.38" (35mm), 1250MCM | ||
| Category Rating: | CAT IV-600V, CAT III-1000V | ||
| Certifications: | UL, CE | ||
| Battery Type: | 4 x AAA | ||
| Warranty: | Limited Lifetime | ||
| Includes: | Clamp Meter, 4 x AAA Batteries, Premium Silicone Test Leads, Quick Start, User Manual (CD), Extended Warranty Registration Card | ||
| Manufacturer | No |
|---|
