Features:
1. H.264 compression standard, Supports ONVIF
2. Support VGA and HDMI output video signal (homologous) at the same time, output resolution is up to 1920x1080p
3. Elegant appearance, cambered surface acrylic panel, it is able to compete with iPhone

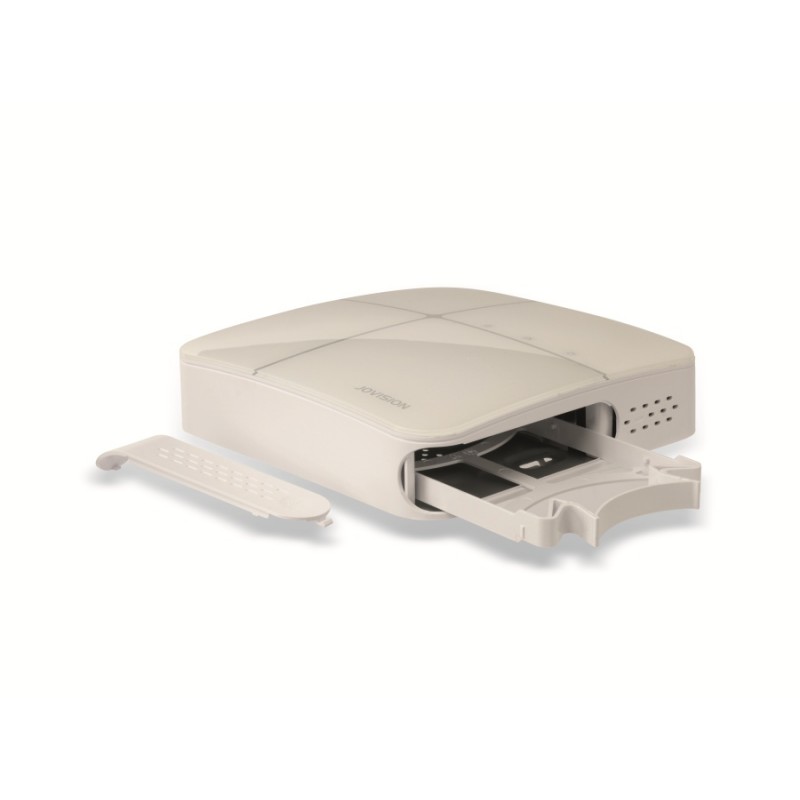

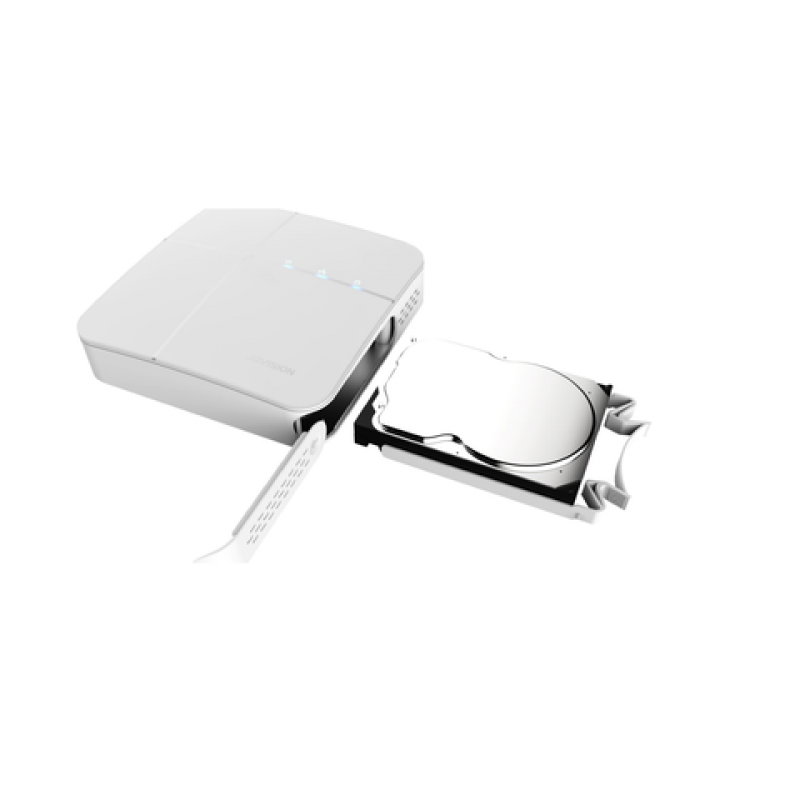

4. With One hard disk and one pull-out hard disk stent, support directly plug without dismantling chassis, easy to operate.
5. CloudSEE technology, one-key remote and network plug & play.
6. Supports 2MP video preview, recording and playback
7. Support smart function: trip line detection, intrusion detection, people counting ,video concentration etc. Video concentration save lots of time for searching key frame;
8. The NVR can search and add IP cameras automatically, “Zero Operation” to display the surveillance video.
9. With intelligent functions to support installers to find the problems during installation.
10. Support voice intercom, realize the two-way voice communication;
11. Support multiple remote monitoring such as CloudSEE network monitoring system, mobile APP and alarm management platform
Specifications:
|
Video&Audio Input |
Video Input |
8 Channel |
|
|
Video&Audio Output |
HDMI |
1 Channel |
|
|
1920×1080/60Hz.1440×900/60Hz.1280×1024/60Hz.1280×800/60Hz.1024×768/60Hz |
|
||
|
VGA |
1 Channel |
||
|
1920×1080/60Hz.1440×900/60Hz.1280×1024/60Hz.1280×800/60Hz.1024×768/60Hz |
|||
|
Audio Output |
1ch,RCA port (electrical level:2.0Vp-p impedance:1kΩ） |
|
|
|
Video&Audio codec parameters |
Record Resolution |
1920×1080/1280×960/1280×720/768×432/704×576 |
|
|
Video Encoding Resolution |
8 ch 1080P/960P/720P |
||
|
Synchronous Playback |
2 ch 1080P 4ch/960P/720P |
|
|
|
Record Management |
Record/Snapshot Type |
Manual record/snapshot, Scheduled record/snapshot, Alarm triggered record/snapshot, Motion Detection triggered record/snapshot, playback snapshot |
|
|
Playback Mode |
Time List & Event Playback |
|
|
|
Backup Mode |
Video Backup & Picture Backup |
||
|
HDD |
HDD Type |
1 SATA Port |
|
|
Quantity of HDD |
Each SATA port supports up to 6TB HDD |
|
|
|
intelligent analysis |
intelligent detection |
intrusion detection |
|
|
Intelligent stores |
Customer-counting/crowd detection/goods left and take.Video block detection.Loitering Detection.moving target detection |
|
|
|
Intelligent firefighting |
Stacking detection, fire detection |
||
|
Intelligent playback |
Video compress |
||
|
External Interface |
Two-way talk |
1ch,RCA port (electrical level:2.0Vp-p impedance:1kΩ） |
|
|
Network Port |
1 RJ-45,10M/100M Ethernet Self-adaption |
||
|
USB Port |
2 USB2.0 |
||
|
Alarm Input |
Not support |
||
|
Alarm Output |
Not support |
|
|
|
Network |
Protocol |
TCP/IP,DHCP,UDP,SMTP,NTP,CloudSEE |
|
|
General |
Work Temperature |
-10℃～+55℃ |
|
|
Work Humidity |
10%～90% |
|
|
|
Power |
DC12V |
||
|
Watts |
≤15W(without HDD) |
||
|
Size(W*H*D) (mm) |
200x200x56 |
||
|
Weight (g) |
≦1200 (Without HDD) |
| Manufacturer | No |
|---|
