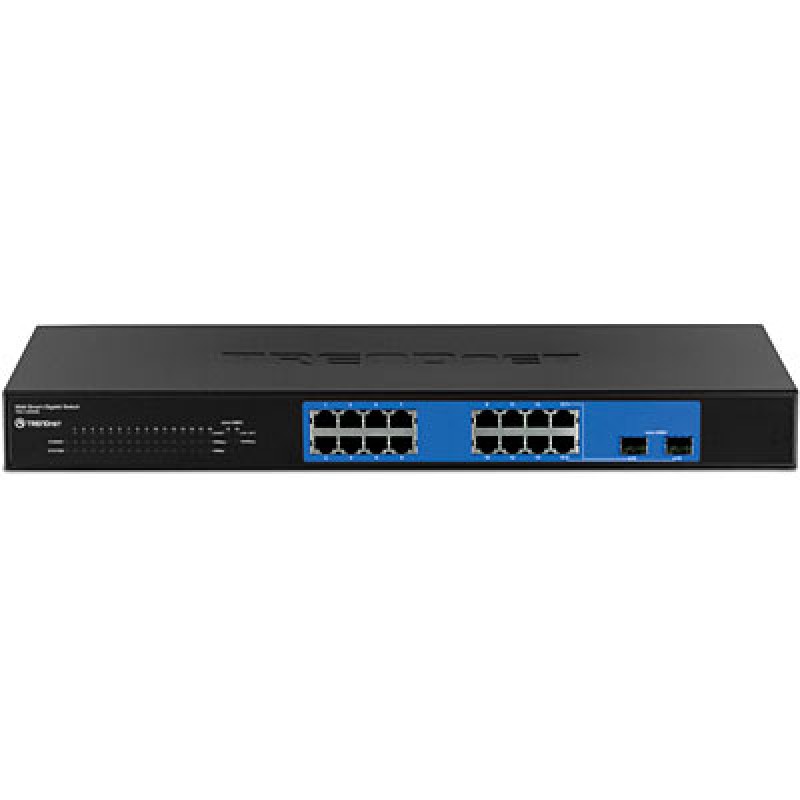

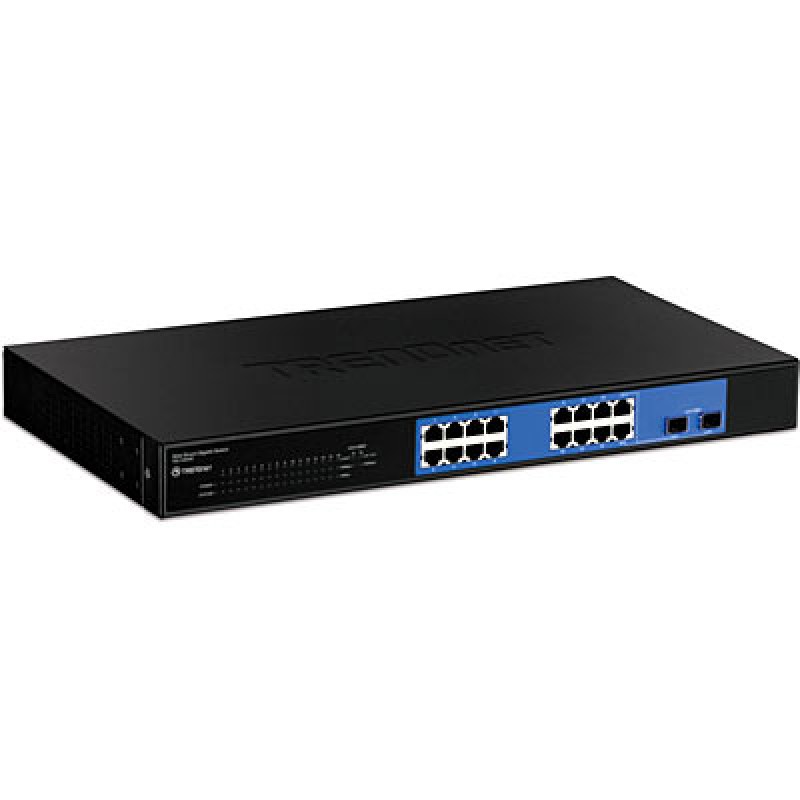

The 16-Port Gigabit Web Smart Switch with 2 Shared Mini-GBIC Slots (model TEG-160WS) delivers a 32 Gbps switching capacity with managed layer 2 features at a reduced cost. Support for SNMP v1, 802.1X, STP, 802.1Q VLAN, QoS, IGMP snooping, Broadcast Storm Control and port Trunking provides a cost effective, scalable and secure backbone switch solution for SMB networks.
SNMP support enables the switch to provide valuable status and event information, saving system administrators time and resources. Connect a fiber network to the shared mini-GBIC slots. Access the Web-browser management interface and segment up to 256 Virtual Local Area Networks, manage network priority with 802.1p support and dedicate bandwidth with port-based Trunking.

-
16 x 10 / 100 / 1000 Mbps Auto-MDIX RJ-45 ports
-
2 x 1000Base-SX / LX Mini-GBIC slots (shared with Gigabit ports 15-16)
-
32 Gbps switching capacity
-
IEEE 802.3x Full Duplex Flow Control and Back Pressure
-
Static Port Trunk
-
IEEE 802.1D Spanning Tree Protocol
-
IEEE 802.1p QoS
-
IEEE 802.1X Authentication and SNMP v1
-
Supports port based IEEE 802.1Q VLAN Tag and Asymmetric VLAN
-
Store and Forward switching method
-
Front panel diagnostic LEDs
-
Supports Jumbo Frame packets (max size up to 10 Kbytes)
-
Integrated address look-up engine supports up to 8K absolute MAC addresses
-
Supports 512 Kbytes RAM for data buffering
-
Easy configuration via Web browser
-
Standard 19” (1U) rackmount size (rackmount kit included)
Specification:
Standards
- IEEE 802.3 10Base-T
- IEEE 802.3u 100Base-TX
- IEEE 802.3ab 1000Base-T
- IEEE 802.3z 1000Base-SX / LX (Mini-GBIC)
- IEEE 802.3x Flow Control and Back Pressure
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1p QoS
- IEEE 802.1Q VLAN Tag
- IEEE 802.1X Authentication
- SNMP v1
Protocol
- CSMA / CD
Transmission Method
- Store-and-Forward
Interface
- 16 x 10/100/1000 Mbps Auto-MDIX RJ-45 ports
- 2 x 1000Base-SX / LX Mini-GBIC slots (shared with Gigabit ports 15-16)
Network Media
- Ethernet: UTP / STP Cat. 3, 4, 5 up to 100 m
- Fast Ethernet: UTP / STP Cat. 5, 5e up to 100 m
- Gigabit: UTP / STP Cat. 5, 5e, 6 up to 100 m
Data Transfer Rate
- 10 Mbps: 10 / 20 Mbps (Half / Full-Duplex)
- 100 Mbps: 100 / 200 Mbps (Half / Full-Duplex)
- 1000 Mbps: 2000 Mbps (Full-Duplex)
Data RAM Buffers
- 512 KBytes per device
Filtering Address Table
- 8K entries per device
Switch Fabric
- 32 Gbps forwarding capacity
Forwarding Rate
- 23.8 Mpps
Diagnostic LEDs
- Per Unit: Power, System
- Per Copper Gigabit Port: Link / ACT, 1000 M, 100 M
- Per Mini-GBIC Port: Link / ACT, 1000 M
Power Supply
- 100 ~ 240 V AC 50 / 60 Hz, internal universal switching power
Power Consumption
- 30 watts (max)
Dimension
- 440 x 210 x 44 mm (17.3 x 8.3 x 1.73 in.)
Weight
- 3 kg (6.6 lbs)
Temperature
- Operating: 0°C ~ 40°C (32°F ~ 104°F)
- Storage: -10°C to 70°C (14°F to 158°F)
Humidity
- Operating: 10 % ~ 90 % (non-condensing)
- Storage: 5 % ~ 90 %(non-condensing)
Certifications
- CE, FCC
Package Contents
- TEG-160WS
- Multi-Language Quick Installation Guide
- CD-ROM (Utility & User’s Guide)
- Power Cord
