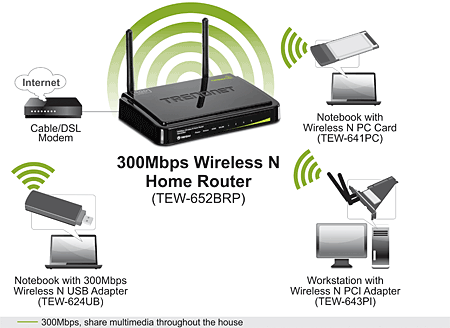

The N300 Wireless Home Router delivers the highest level of security with 12x the speed and 4x the range of wireless g products. Quickly install the router and use it with TRENDnet wireless n adapters to receive the full benefits of wireless n speed and coverage.
The latest in wireless encryption and a secure firewall provide the ultimate in wired and wireless security. Advanced Multiple Input Multiple Output (MIMO) antenna technology delivers expansive coverage and eliminates dead spots. A quick and intuitive installation process, one touch wireless connection using Wi-Fi Protected Setup and advanced manage-ment capabilities make this product well suited for your most demanding home networking needs.
Specification:
⚫ TEW-652BRP (Version v3.2R)
⚫ Standards: Wired: IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX) Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0)
⚫ WAN: 1 x 10/100Mbps Auto-MDIX port (internet)
⚫ LAN: 4 x 10/100Mbps Auto-MDIX ports
⚫ WPS Button: Enable Wi-Fi Protected Setup function
⚫ Connection Type: Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP, BigPond
⚫ UPnP: UPnP IGD 1.0 compliant
⚫ DMZ: DMZ host & Virtual Servers
⚫ DNS: Static or WAN assigned DNS servers; 3 verified services for DDNS
⚫ Internet Access Control: MAC Address Filter, Domain/URL Filter, Protocol/IP Filter
⚫ Logging: 5 types of event logging; email report
⚫ LED Indicator: Power, LAN1~LAN4, WAN, WLAN
⚫ Power Adapter: 5V DC, 2.5A external power adapter
⚫ Power Consumption: 7watts (max.)
⚫ Dimension (L x W x H): 150 x 110 x 30 mm (5.9 x 4.3 x 1.1 inches)
⚫ Weight: 245g (8.6 oz)
⚫ Temperature: Operation: 0°~ 40°C (32°F~ 104°F); Storage: -10°~ 70°C (14°F~158 °F)
⚫ Humidity: Max. 90% (non-condensing)
⚫ Certifications: CE, FCC
⚫ Frequency: 2412~2484MHz ISM band
⚫ Antenna: 2 x 2dBi detachable dipole antennas
⚫ Media Access Protocol: CSMA/CA with ACK
⚫ Data Rate: 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps 802.11n: up to 300Mbps
⚫ Security: WEP(HEX/ASCII): 64/128-bit WPA(AES/TKIP): WPA/WPA2, WPA-PSK/WPA2-PSK Enable/Disable broadcast SSID
⚫ Output Power: 802.11b: 17dBm (typical) 802.11g: 13dBm (typical) 802.11n: 13dBm (typical)
⚫ Receiving Sensitivity: 802.11b: -85dBm (typical) @ 11Mpbs 802.11g: -68dBm (typical) @ 54Mbps 802.11n: -62dBm (typical) @ 300Mbps
⚫ Channels: 1~ 11 (FCC), 1~13 (ETSI)
| Manufacturer | No |
|---|
