Overview
Express yourself, hands free. Compact bodypack system with a cardioid headworn mic for crystal-clear sound, even in noisy surroundings. Transmitter features an illuminated mute button, 10 hours of operation, and 960 tunable frequencies. Rugged ME3 headmic provides excellent pop protection. All-metal, True Diversity receiver offers intuitive scan and sync functions that ensure trouble-free operation.
Features
- Easy-to-use, all-in-one package for singers, speakers and presenters
- Hands-free operation
- Outstanding sound quality
- Mute button for full speech control
- Synchronization via RF remote channel
- Frequencies tunable in steps of 25 kHz
- 24 MHz bandwidth
- 8 frequency banks with each max 12 presets

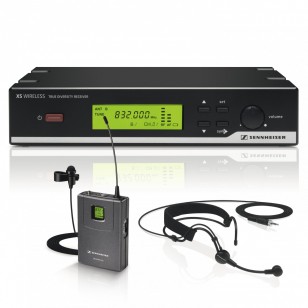

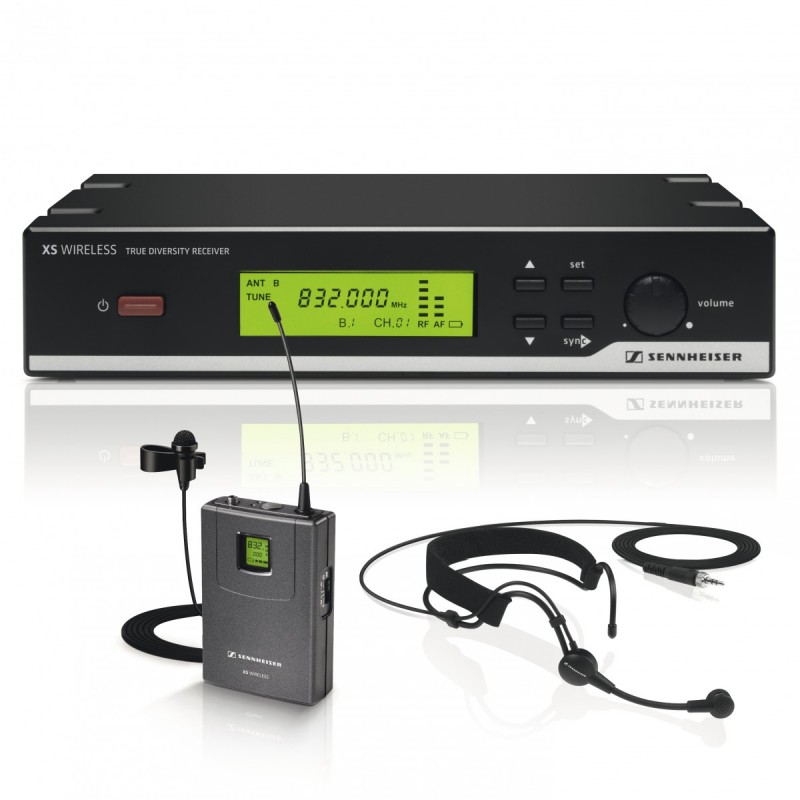

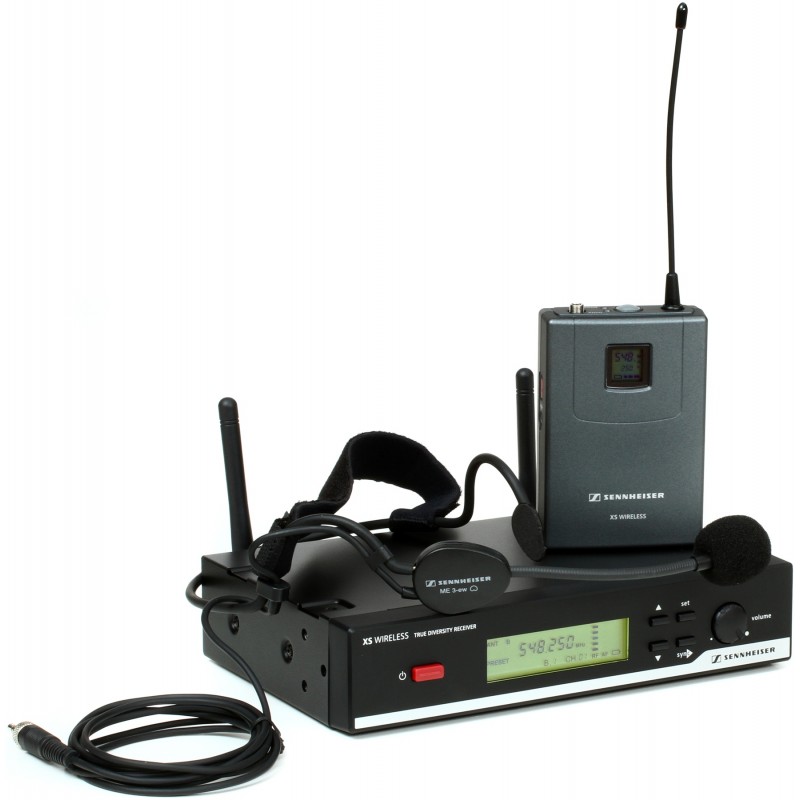

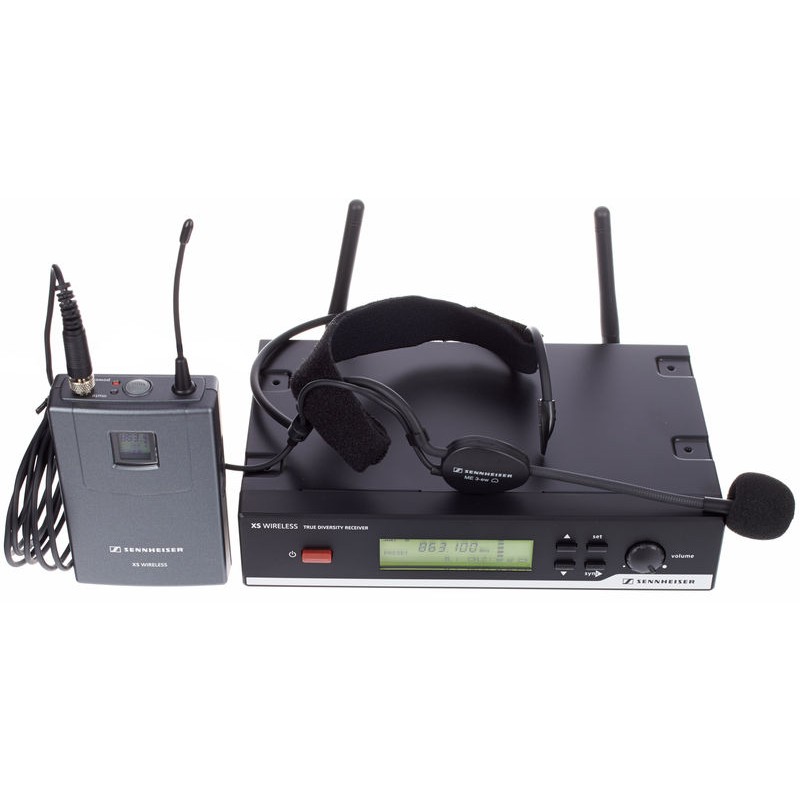

What's in the box?
- (1) EM 10 stationary receiver
- (1) SK 20 bodypack transmitter

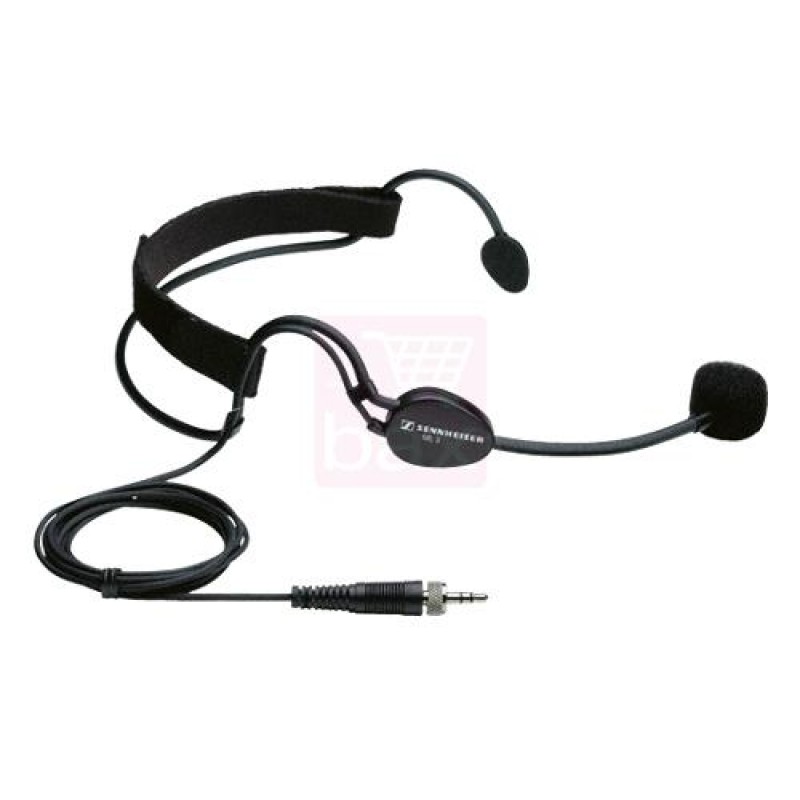

- (1) ME 3 headworn microphone (super-cardioid pick-up pattern)
- (1) NT 2-3 power supply unit
- (2) antennas
- (2) AA batteries
- (1) pouch
- Instruction manual
Technical Data
RF frequency range
548...572 MHz
821...832 MHz / 863...865 MHz
766...790 MHz
614...638 MHz
606...630 MHz
548...865 MHz
Presets
12
Frequency response
mic.: 100 - 16000 Hz
line: 60 - 16 000 Hz
THD, total harmonic distortion
< 1 %
Signal-to-noise ratio
> 103 dB(A)
Transmission/receiving frequencies
960 (520 in range E)
Switching bandwidth
24 MHz (13 MHz in range E)
Receivers
Dimensions
200 x 127 x 42 mm
Weight
~ 730 g
Antenna connector
2 BNC, 50 Ω
Audio output level (balanced)
XLR : +14 dBu max
Audio output level (unbalanced)
Jack : +8 dBu max
Diversity reception
True Diversity
Transmitter
Dimensions
96 x 66 x 24 mm
Weight
~ 95 g
RF output power
typ. 10 mW
In compliance with
ETS 300422 , ETS 300445 , CE , FCC
Operating time
approx. 10 h
Input voltage range
0,5 Vrms
Microphone
Microphone
permanent polarized
Sound pressure level (SPL)
150 dB
Transducer principle
permanently polarised
Pick-up pattern
cardioid
AF sensitivity
1,6 mV/Pa
| Manufacturer | No |
|---|
