DP26 2 In 6 Out Sound Speaker Management Processor

More Views

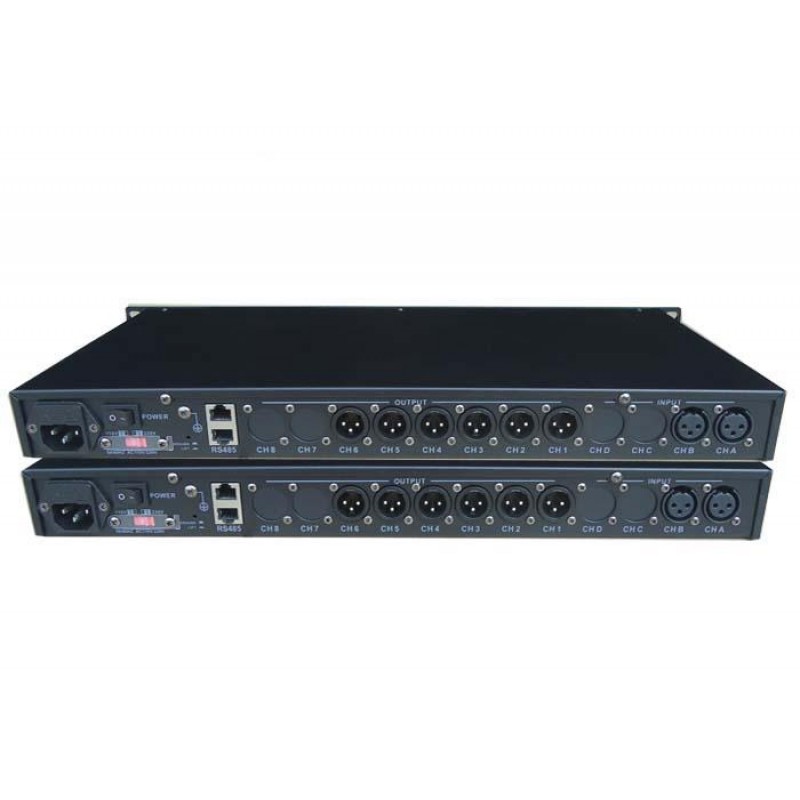

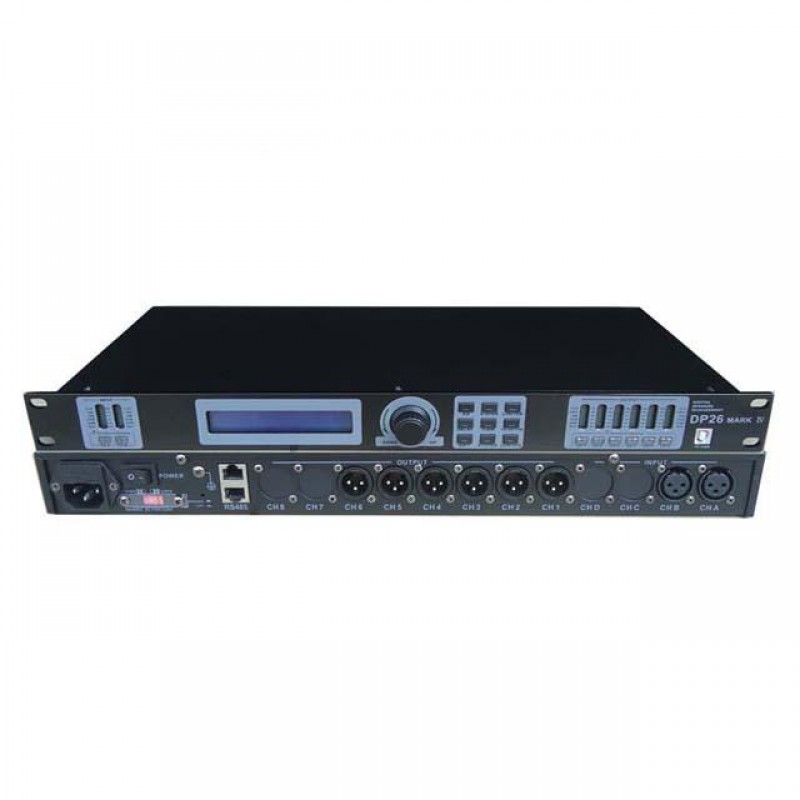

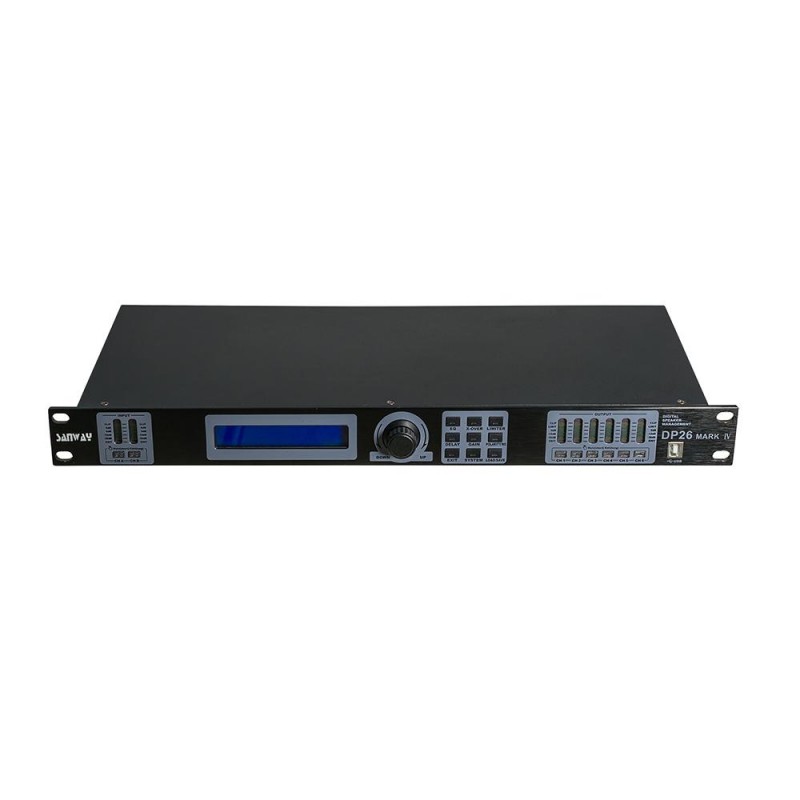

DP26 2 In 6 Out Sound Speaker Management Processor

Availability: In stock

৳37,000.00

Quick Overview

Please Call For Updated Price & Quantity: 01611522742

Qty:

Be the first to review this product

Email to a Friend

Quick details

Input Impedance	Balance: 20KΩ
Output Impedance	Balance: 100Ω
PC Com Port	One USB Com Port on front panel, 2 Rs485 Com Port on back panel(RJ-45)
CMRR	>70dB@1KHz
Input Level	≤+25dBu
Frequency Response	20Hz~20KHz ±0.5dB
S/N R	>110dB
THD	<0.01% @OUTPUT=0dBu/1KHz
Crosstalk of Channels	>80dB@1KHz

Key Feature

1) Build in USB & RS 485 COM
2) Program Function; Recall Function; Copy Function; Save Function; Password Function.
3) 6-band EQ: Frequency, gain & Q fact are adjustable;
Gain can be adjusted from -20 dB to +20 dB.
4) 96k Hz sampling frequency, 24-bit A/D and D/A converter, 32-bit DSP digital sound processor
5) Input channel: With 6-band parameter EQ, Delay, polarity
6) Output channel: With 6-band parameter EQ, Gain, Delay, Polarity, Crossover, Limiter/Compressor, Signal select.

Specification

Item	DP26
Delay Time Step	Each input channel has independent delay control, Range:0~1000mS; 21μS step@0~10mS; 84 μS step@ 10mS~20ms; 0.5mS step@ 20mS~1000mS
Input/Output Polarity	In-phase(+) or reversed phase(-)
Input EQ	6-band parameter EQ; Frequency: 20Hz~20KHz; Gain:-20 dB~+20 dB; Bandwidth: 0.05oct~3oct
Mute	Mute with each Input& Output channel
Input Selection	Each input channel can be selected to each output channel
Output Gain	Range:-12dB~+12dB, step: 0.1dB
Crossover	Each output channel can be independently set as LPF and HPF. The parameters can be adjusted. Filter type :Linkwitz-Riley; Bessel; Butterworth. The Crossover Frequency: 20Hz~20KHz, Slope: 12dB/oct; 18dB/oct; 24dB/oct;48dB/oct.
Limiter	Limiter with each output channel. The parameters are adjustable: Threshold value: -20dBu~+20dBu; step:0.5dBu.
Attack time	0.3mS~100mS. 0.1mS step@0.3~1mS; 1mS step @1mS~100mS. Release Time: Release Time can be set as twice, 4times, 6times, 8times, 16times, 32times.
Output EQ	Each output channel has 6-band EQ: 3 modes: Lo-Shelf/Hi-Shelf/Parameter. A: Lo-Shelf: Slop: 6dB/12dB; Frequency: 20Hz~20kHz; Gain: -20dB~20dB; B: Hi-Shelf: Slop: 6dB/12dB; Frequency: 20Hz~20kHz; Gain:-20dB~20dB; C: Parameters: frequency: 20Hz~20KHz, bandwidth: 0.05oct~3oct; Step: 0.05oct; Gain: -20dB~+20dB, Step 0.1dB
Processor	96KHz Sampling frequency, 32-bit Floating-Point DSP
Display	With 2*24 LCD, 8-LED input/output level. Mute and Editing mode can be displayed.
Power	≤25W
Power Supply	AC 110V/220V 50Hz/60Hz
Dimension(L×W×H)	482×232×44mm
Gross Weight	5.0kg
