SCSI Hard Disk Seagate 300GB Fibre Channel

More Views

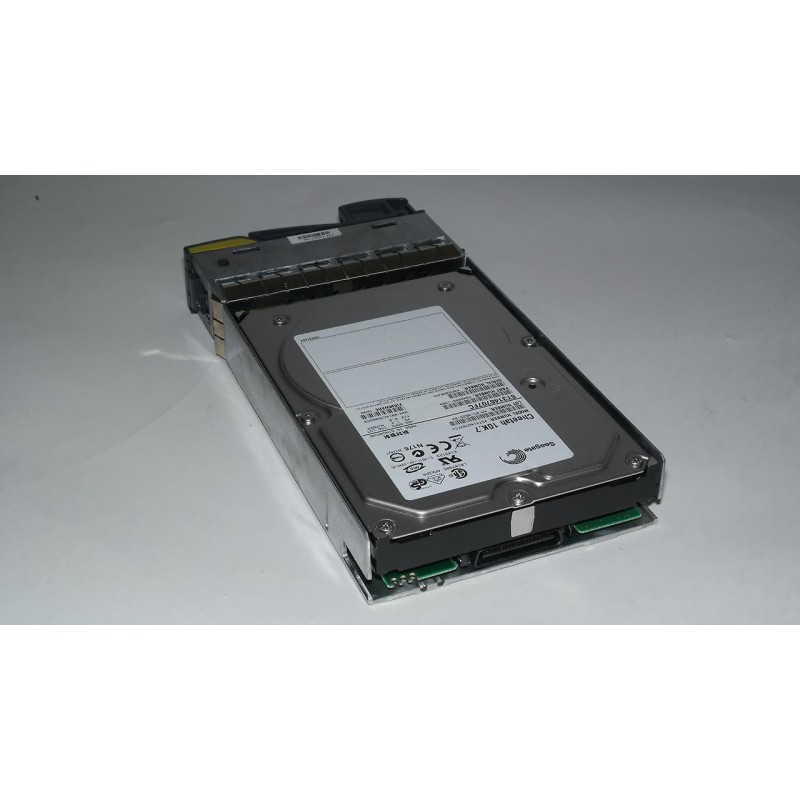

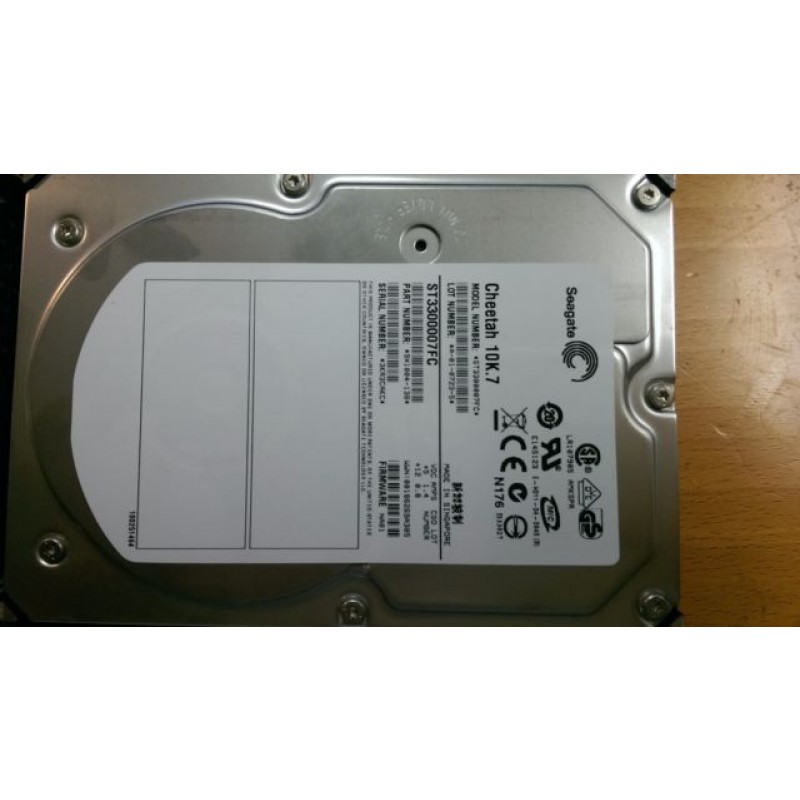

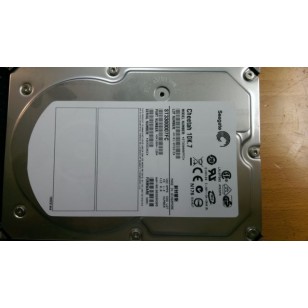

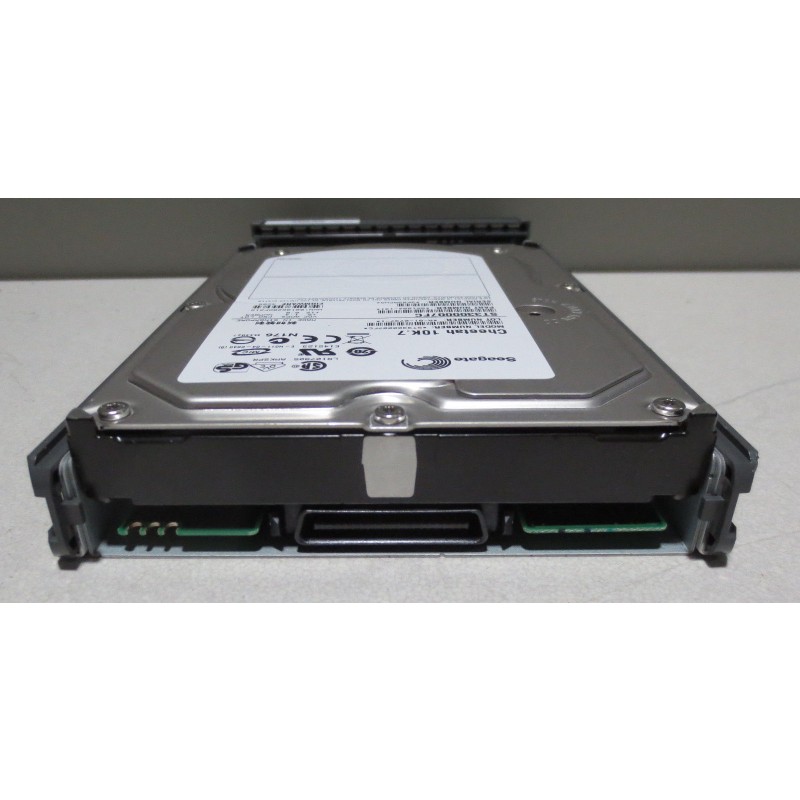

SCSI Hard Disk Seagate 300GB Fibre Channel

Availability: In stock

Only 3 left

৳26,500.00

Quick Overview

Capacity: 300GB
Speed: 10,000RPM
Interface Types: Fibre Channel - Internal - Arbitrated Loop ASA II
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 59.9
Average Seek Time: 4.7 / 5.3
Electrical Interface: FC-AL - 2Gbps
On-Board Cache: 8MB

Qty:

Be the first to review this product

Email to a Friend

Cheetah 10K.7 FC drives have the following standard features:

Integrated dual port FC-AL controller
Concurrent dual port transfers
Support for FC arbitrated loop, private and public attachment
Differential copper FC drivers and receivers
Downloadable firmware using the FC-AL interface
Supports SCSI enclosure services via interface connector
128-deep task set (queue)
Supports up to 32 initiators
Drive selection ID and configuration options are set on the FC-AL back panel or through interface commands. Jumpers are not used on the drive.
Fibre Channel worldwide name uniquely identifies the drive and each port
User-selectable logical block size (any multiple of four bytes, 512 to 528 bytes per logical block)
Selectable frame sizes from 256 to 2,112 bytes
Industry standard 3.5-inch low profile form factor dimensions
Programmable logical block reallocation scheme
Flawed logical block reallocation at format time
Programmable auto write and read reallocation
Reed-Solomon error correction code
Sealed head and disc assembly (HDA)
No preventive maintenance or adjustments required
Dedicated head landing zone
Automatic shipping lock
Embedded Grey Code track address and servo wedge address to eliminate seek errors
Self-diagnostics performed at power on
1:1 interleave
Zone bit recording (ZBR)
Vertical, horizontal, or top down mounting
Dynamic spindle brake
8,192 Kbyte data buffer. See Section 4.5.
Drive Self Test (DST)
BackGround Media Scan (BGMS)
Data Integrity Check
Power Save
Embedded servo design
Reallocation of defects on command (Post Format)
Fibre Channel interface transports SCSI protocol

Media description

The media used on the drive has an aluminum substrate coated with a thin film magnetic material, overcoated with a proprietary protective layer for improved durability and environmental protection.

Performance
