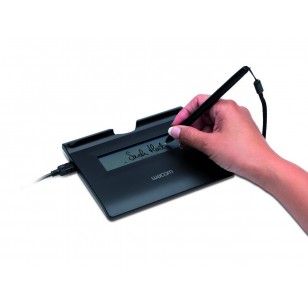

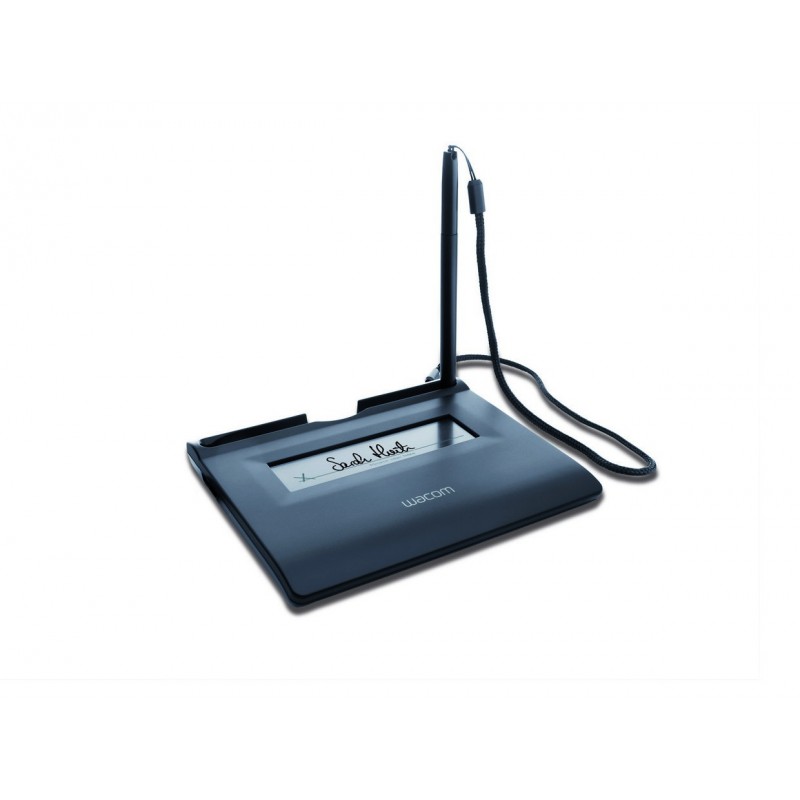

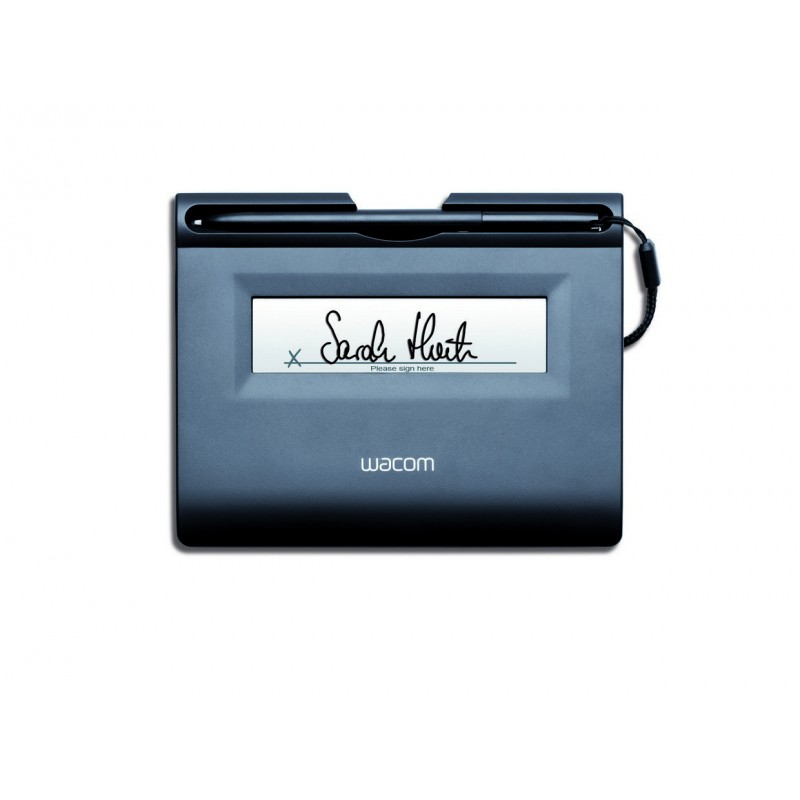

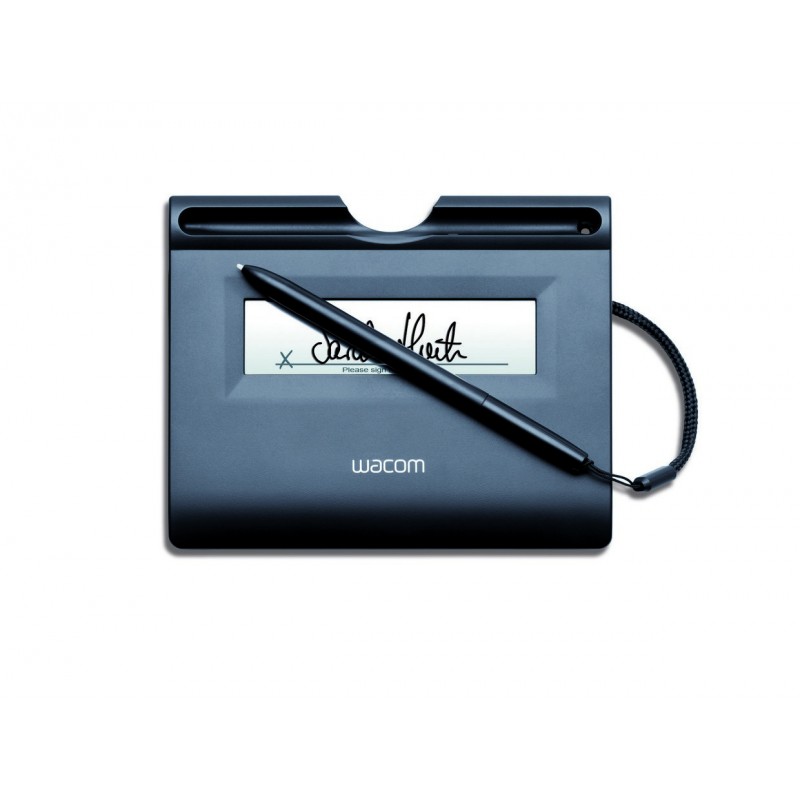

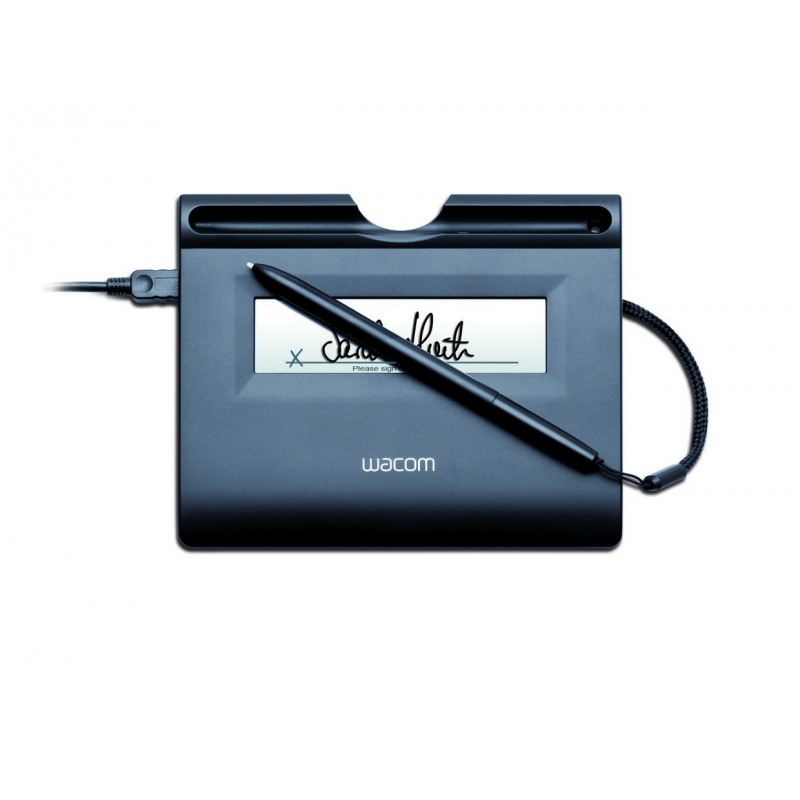

With its compact and robust design, the Wacom STU-300 LCD signature pad is ideal for anyone who works frequently with documents while on the move, such as insurance agents or customer support staff. Their customers can quickly and safely sign contracts, authorise payments and confirm deliveries – all without paper documents. Best of all: the pen is tethered to the pad so it cannot be lost. For transport, it can be stowed conveniently in the pen rest. The STU-300 ensures maximum precision with 512 real pressure levels, a real data rate of 200 points per second and a resolution of 2,540 lpi. The signature pad has been developed for all eventualities in day-to-day use, and offers a broad display surface which is suitable even for long signatures.
Specifications:
| Dimensions (W x H x D) |
156 x 127.4 x 16.9mm, 6.14 x 5.01 x 0.66inch |
|---|
| Color of front / back cover |
black / black |
|---|
| Weight |
250g / 7,55oz |
|---|
| Power Supply |
5V DC USB bus powered |
|---|
| Power Consumption |
1.0W maximum |
|---|
| Communication / grapic card interface |
USB 2.0 (full speed) |
|---|
| Status LED |
No |
|---|
| Type |
F-STN LCD Positive Reflective |
|---|
| Cover Plate Surface |
Tempered anti-glare etched glass |
|---|
| Screen Diagonal |
114.3mm / 4.5inch |
|---|
| Screen Size |
102 x 27mm / 4 x 1inch |
|---|
| Resolution |
396 x 100pixels |
|---|
| Aspect Ratio |
4:3 |
|---|
| Viewing Angles (H/V) |
80° / 80° |
|---|
| Colour Depth |
B/W |
|---|
| Technology |
Electro-Magnetic-Resonance (EMR) |
|---|
| Active Area |
102 x 27mm / 4 x 1inch |
|---|
| High Precsion Active Pen, Cordless and Battery Free |
Yes |
|---|
| Pen Pressure Levels |
512 (non-interpolated) |
|---|
| Resolution |
2.540 lpi (not interpolated) |
|---|
| Coordinate Accuracy |
± 0.5mm / ± 0.02inch (center) |
|---|
| Reading Height |
5 mm / 0.2 inch (center) |
|---|
| Report Rate |
200pps / 800 4D coordinates |
|---|
| Pen Storange |
Integrated pen compartment |
|---|
| Pen Tether |
Yes |
|---|
| Encryption System |
AES 128 bit encryption, Diffie-Hellman key exchange |
|---|
| Supported operating systems |
Windows 10/8 / 7 / Vista / XP, Mac OS X 10.6.8 or later, Terminal server support |
|---|
| Software |
Compatible with signature / E-signing software and sign I pro PDF, C++, .Net and Java SDK/API available for developers |
|---|
| Operating Temperature |
+5°C to 35°C / 41°F to +95°F |
|---|
| Operating Humidity |
20% to 80% RH (non-condensing) |
|---|
| Storage Temperature |
-10°C to +60°C / -14°F to 140°F |
|---|
| Storage Humidity |
20% to 90% RH (non-condensing) |
|---|
| Mounting Options |
screw mounting holes |
|---|
