Features:
Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards

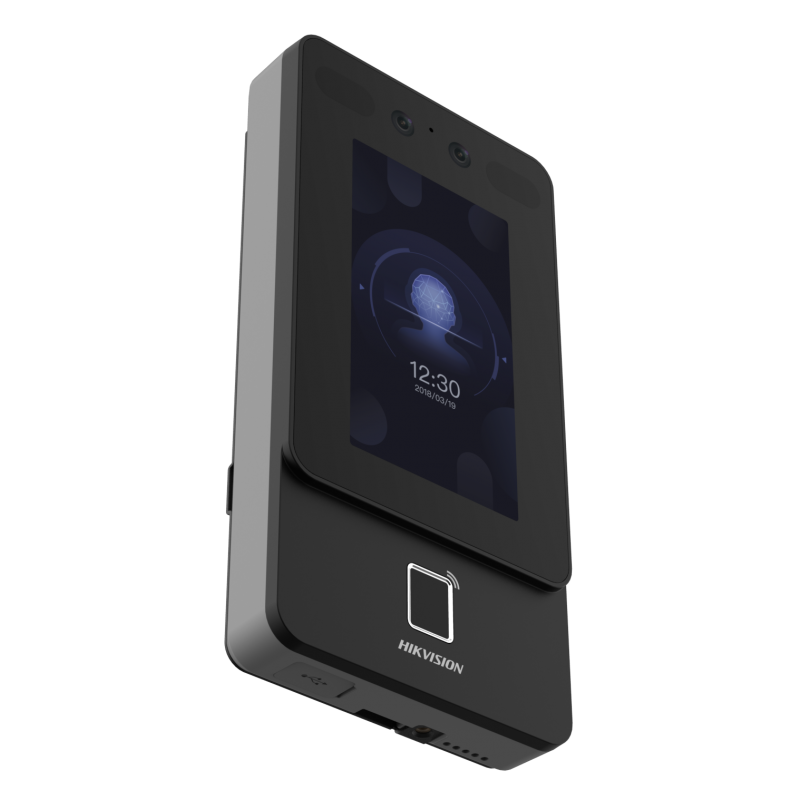

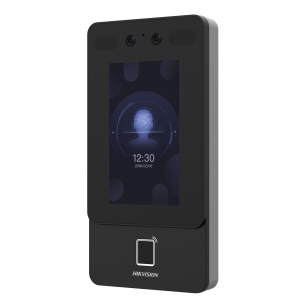

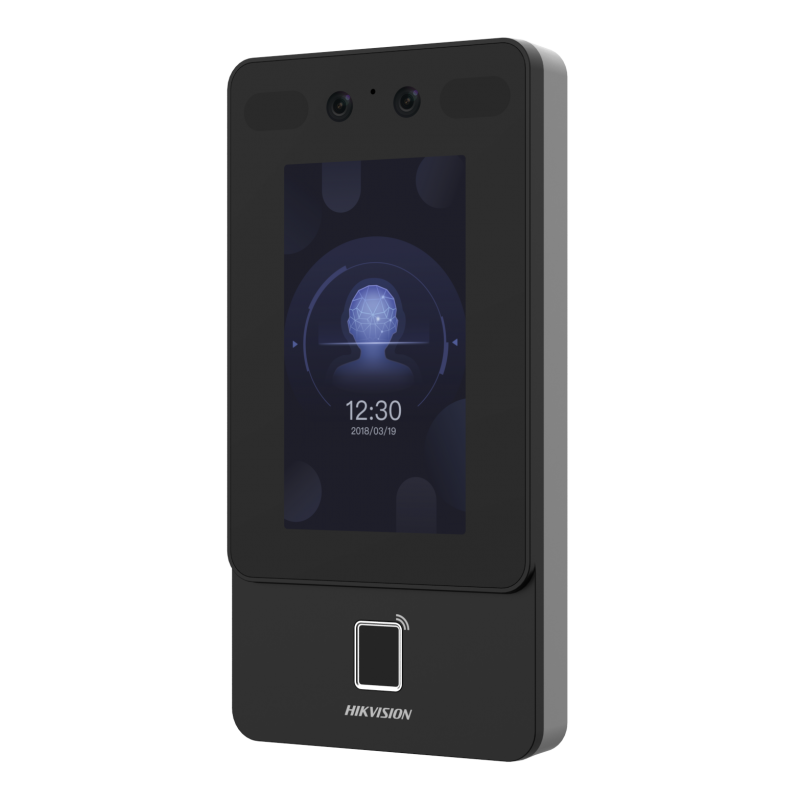

Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
Supports face with mask recognition
Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Supports platform-applied personal PIN and device-set personal PIN
Supports Push SDK.
Supports the following SIP servers: ASTERISK, 3CX, ELASTIX, miniSipServer, Brekeke, OpenSIPs, Kamailio.
Supports face duplicate check, preventing multiple people from using the same face.
Supports attendance-only function.
| Category | Parameter | Specification Detail |
|---|---|---|
| System & Display | Screen Size & Type | 4.3-inch Capacitive LCD Touch Screen |
| Resolution | 272 × 480 pixels | |
| Biometrics & Video | Camera | 2 MP Dual-Lens Wide-Angle Camera |
| Face Recognition Distance | 0.3 meters to 1.5 meters | |
| Face Recognition Speed | < 0.2 seconds per user | |
| Face Accuracy Rate | ≥ 99% | |
| Fingerprint Match Speed | < 1 second | |
| Storage Capacities | Face Templates | Max. 1,500 |
| Fingerprint Capacity | Max. 3,000 | |
| Card Capacity | Max. 3,000 (Mifare 1 / M1 IC Cards) | |
| Event Log Capacity | Up to 150,000 records | |
| Connectivity | Network Interfaces | 1x RJ45 10M/100M Self-Adaptive Ethernet Port, Wi-Fi |
| Control Interfaces | 1x RS-485, 1x Wiegand (Hik 26/34-bit), 1x USB 2.0 | |
| Access I/O | 1x Lock Output, 1x Exit Button, 1x Door Contact Input, 1x TAMPER | |
| Network Protocols | TCP/IP, ISAPI, ISUP 5.0, SIP Server Compatibility | |
| Audio | Audio Hardware | Built-in omnidirectional microphone and loudspeaker |
| Intercom Capabilities | Two-way audio with Hikvision client software, indoor, and main stations | |
| Electrical | Power Inputs | Standard PoE (IEEE 802.3af/at) OR 12 VDC / 1 A |
| Auxiliary Power Output | 12 VDC / 1 A lock power supply output (active when terminal is powered via PoE) | |
| Physical & Environment | Dimensions (W × H × D) | 91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") |
| Weatherproofing | IP65 rated dust and water protection | |
| Operating Temperature | -30 °C to 60 °C (-22 °F to 140 °F) | |
| Operating Humidity | 0% to 90% (Non-condensing) |
| Manufacturer | No |
|---|
