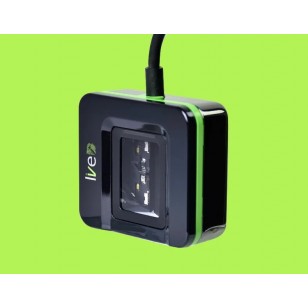

Live20R/SLK20R a leading fingerprint scanner designed by ZK USA laboratory which adopts the advanced optical design. It has a superior ability to do live fingerprint detection and capture high-quality fingerprint images by 2 Megapixel camera. Live2R can be the most comfortable and affordable desktop Fingerprint enrollment and identification device. If you are looking for fingerprint scanner for registering fingerprint template on PC, SLK20R(Live20R) is highly recommended. It is elegant and compact, suitable for most WIN OS.
Specifications:
| Model Name | SLK20R (Live20R) |
| Material | Optical |
| CPU | 280MHz DSP |
| Flash | 32 MB |
| SoC | RTOS[image out only] |
| Image Quality | 2 million pixels CMOS |
| Encrypted Fingerprint Data | YES |
| Sunlight Operation | Yes, Dark field and Automatic Gain / Exposure |
| Water Splash | YES |
| Dry, Wet, or Rough Fingerprints | Work well |
| Power Consumption | 5V:200mA Scanning;5V:60mA idle (waiting for finger) |
| Live Fingerprint Detection | YES |
| LED | White |
| Product Certifications | FCC, CE, RoHS, PIV |
| Power Voltage | 5V (USB) |
| Power Current | 200mA |
| Communication | USB 2.0 / USB1.1 |
| Interface Socket | USB Type A |
| Image Resolution | 500~1000 dpi |
| Effective Collecting Area | 15.24 * 20.32 mm (FAP20) |
| Collecting Area | 16.5 * 23 mm |
| Image Size | 300 * 400 pixel (FAP20) |
| Dimension | 49 * 44 * 20.1mm (L*W*H) |
| Image Format | RAW, BMP, JPG |
| Template | ZKFinger V10.0 ; ISO19794-2 ; ANSI-378 |
| Template Size | 1- 4KB (ZKFinger V10.0);1568 B (ISO 19794-2) |
| Gray Level | 256 |
| Weight | 0.12kg |
| Operating Environment | -20 °C ~ +50 °C; 90% r.h. |
| Manufacturer | No |
|---|
