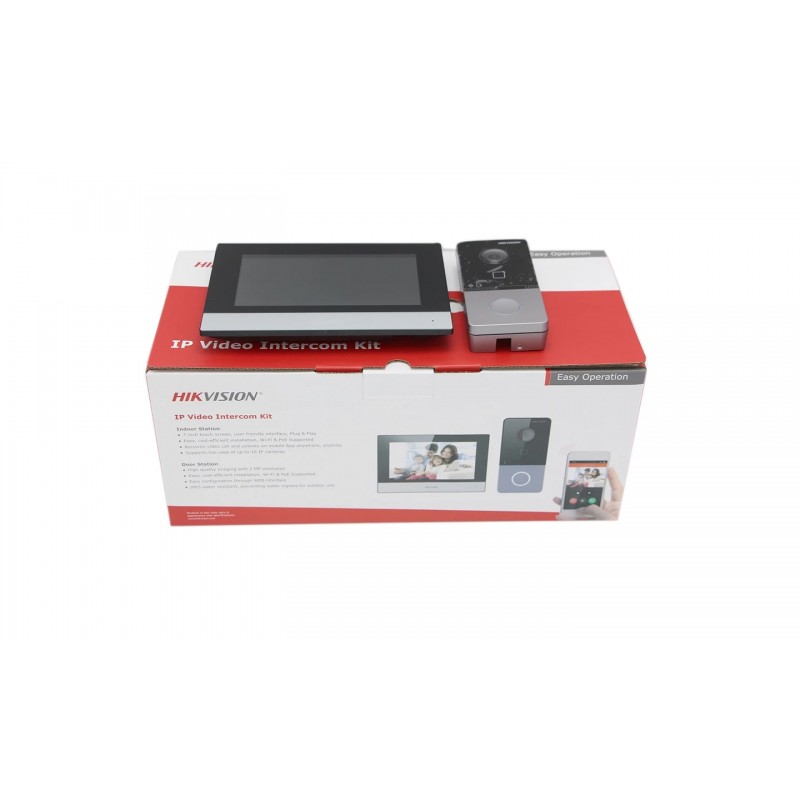

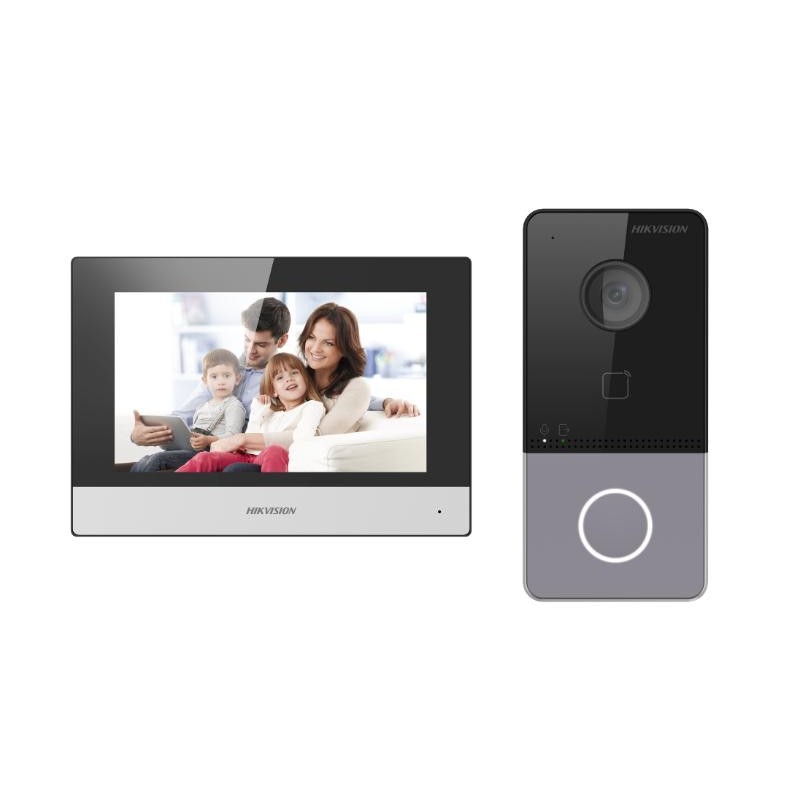

Hikvision IP Video Intercom Kit Calling Bell DS-KIS603-P(B)

Feature Key

Villa Door Station

• Standard PoE
• 2 MP HD camera
• Noise suppression and echo cancellation
• Low illumination
• Access control functions
• Tamper-proof
• Configuration remotely via Web

Network Indoor Station

• 7-inch colorful touch screen with resolution 1024 × 600
• Standard PoE
• Stores messages and captured pictures in the TF card
• Remote unlocking via the client software or the mobile client
• Views live videos of door stations and linked cameras
• Supports wireless network

Specifications:

Villa Door Station - System parameters

• Operation system Embedded Linux operation system
• Operation method Single-button
• Flash 32 M
• RAM 256 M

Villa Door Station - Video Parameters

• Camera 2MP HD camera
• Night vision Low illumination IR supplement mode:3 m
• BLC Support
• DNR Support
• WDR True WDR
• Field of view Horizontal: 129° Vertical: 75°
• Video compression standard H.264
• Stream Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
• Resolution Main stream: 1920 × 1080p, 720p Sub stream: 704 × 576
• Motion detection Support
• Anti-flicker frequency 50 Hz, 60 Hz

Villa Door Station - Audio parameters

• Audio intercom Two-way audio communication
• Audio input Built-in omnidirectional microphone
• Audio output Built-in loudspeaker
• Audio compression standard G.711 U
• Audio compression Rate 64 Kbps
• Audio quality Noise suppression and echo cancellation

Villa Door Station - Network parameters

• Wired network 10/100 Mbps Ethernet
• Network protocol TCP/IP, RSTP

Villa Door Station - Access control parameters

• Reading frequency 13.56 MHz
• Card type Mifare card
• Relay 1

Villa Door Station - Interfaces

• RS-485 1
• Wi-Fi 2.4G Wi-Fi
• Debugging port 1
• TF card 0
• Alarm input 4
• Grounding 1
• Physical button 1
• TAMPER switch 1

Villa Door Station - General

• Protection level IP65
• Indicator 2
• Power supply IEEE802.3af, standard PoE 12 VDC
• Power consumption ＜ 10 W
• Working temperature -40° C to +60° C(-40° F to 140° F)
• Working humidity 10% to 95%
• Installation Surface mounting
• Dimension 138 mm × 65 mm × 27 mm

Indoor Station - System parameters

• Memory 128 MB
• Flash 32 MB
• Operation system Embedded Linux operation system

Indoor Station - Display parameters

• Display screen 7-inch colorful TFT screen
• Display resolution 1024 × 600
• Operation method Capacitive touch screen

Indoor Station - Audio parameters

• Audio input Built-in omnidirectional microphone
• Audio output Built-in loudspeaker
• Audio compression standard G.711 U
• Audio compression rate 64 Kbps
• Audio quality Noise suppression and echo cancellation

Indoor Station - Network parameters

• Wired network 10/100 Mbps self-adaptive
• Wireless network Wi-Fi 802.11 b/g/n
• Network protocol TCP/IP, SIP, RTSP
• Network interface 1 RJ-45 10/100 Mbps self-adaptive

Indoor Station - Interfaces

• Alarm input 8-ch alarm inputs
• Relay output 2
• TF card Max to 32 G, SD 2.0 or lower version
• RS485 1

Indoor Station - General

• Power supply IEEE802.3af, standard PoE 12 VDC/1 A
• Power consumption ≤ 6 W
• Working temperature -10 °C to 55 °C (14 °F to 131 °F)
• Working humidity 10% to 90%
• Dimensions 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
• Weight 1.599 kg
