FLIR DM166 Thermal Imaging Digital Multimeter

More Views

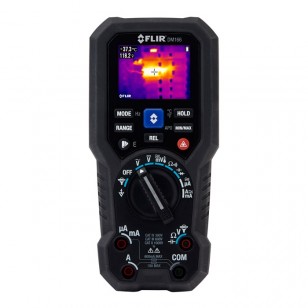

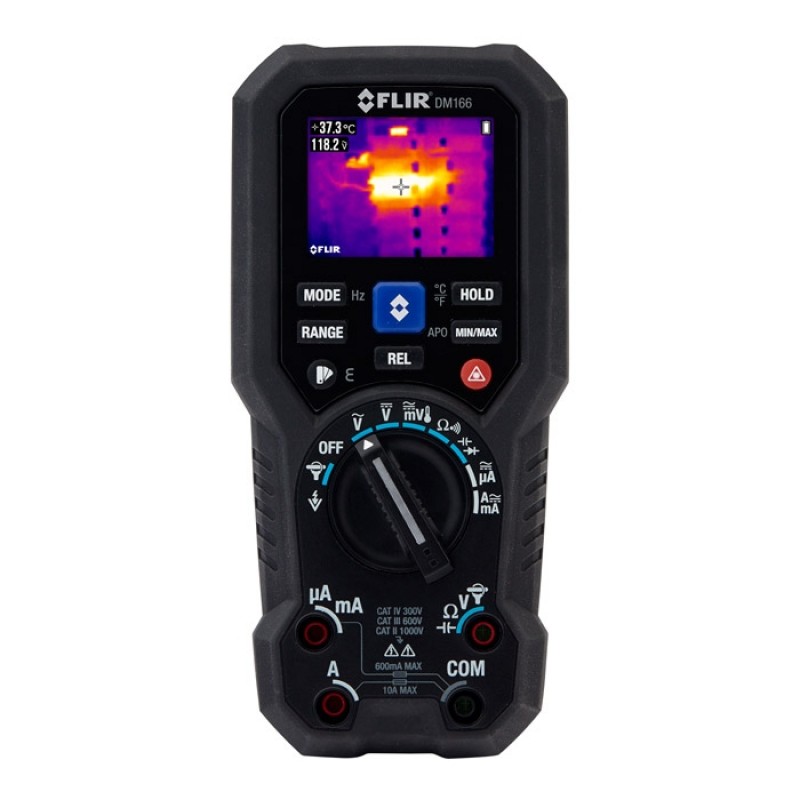

FLIR DM166 Thermal Imaging Digital Multimeter

Availability: In stock

Only 1 left

৳58,800.00

Quick Overview

Available on Pre-Order Only

Featuring Infrared Guided Measurement (IGM™) powered by an 80 x 60 FLIR thermal imager, the DM166 visually guides you to the precise location of temperature anomalies and potential problems faster, more safely, and efficiently. The feature-packed DM166 multimeter is an ideal tool for troubleshooting and diagnosing complex issues in both high-voltage and low-voltage applications.

Qty:

Be the first to review this product

Email to a Friend

FLIR DM166 Thermal Imaging TRMS Multimeter Specifications:

Thermal Imaging
IR Resolution	60 × 80 pixels (4,800 pixels)
Thermal Image Palettes	Rainbow, iron, gray scale
Temperature Range	–10 to 150°C (14 to 302°F)
Focus	Fixed
Electrical Measurements
True RMS
	Range	Basic Accuracy
AC / DC Voltage	600.0 V	±0.7% / ±0.5%
AC / DC milliVolt	600.0 mV	±1% / ±0.5%
VFD AC Voltage	600.0 V RMS	±1.0%
AC / DC Amperage	10.00 A	±1.0% / ±0.7%
AC / DC milliAmp	600.0 mA	±1.0% / ±0.7%
AC / DC µAmp	4000 µA	±1.5%
Resistance	600.0 Ω	±0.3%
	600.0 kΩ	±0.5%
	6.000 MΩ	±0.9%
	60.00 MΩ	±1.5%
Capacitance*	200.0 nF	±1.5%
	200.0 µF	±1.5%
	2.000 mF	±2.0%
	10.00 mF	±5.0%
Diode Test	3.000 V	±0.9%
Frequency Range	99.99 kHz	± 1.0%
Continuity Check	Between 30 Ω and 480 Ω
Thermocouple, Type K	–40 to 400°C DMM ± (1.0% + 1.5°C)
Safety Category Rating	IEC 61010-1, CAT III-600V, CAT IV-300V
IP Rating	IP40
Auto Power Off	Yes
Drop Test	3 metre
