Extech IRC130 Thermal Imager IR Thermometer with Pouch

More Views

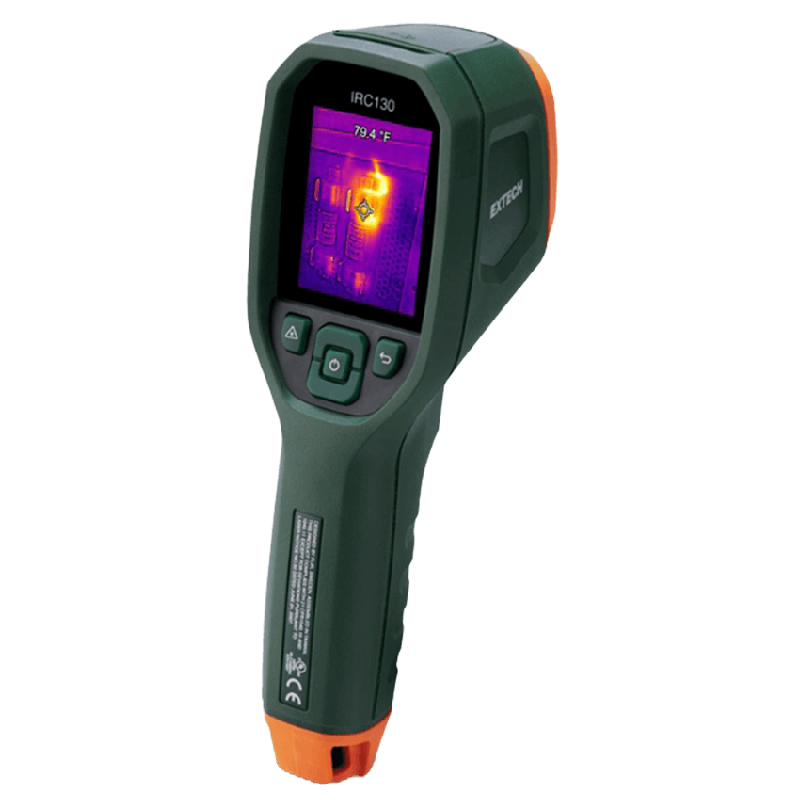

Extech IRC130 Thermal Imager IR Thermometer with Pouch

Availability: In stock

Only 3 left

৳62,000.00

Quick Overview

2.4in TFT color display (320 x 240 pixels)
Integrated true thermal imager (80 x 60 pixels)
Patented MSX technology
Temperature up to 1202°F (650°C)
Accuracy ±1% of reading
Emissivity: 0.10 to 0.99 (adjustable)
Unique coaxial laser
30:1 distance-to-spot (target) ratio
150 ms response time

Qty:

Be the first to review this product

Email to a Friend

Thermal Imager IR Thermometer with MSX

Two-camera technology: 80 x 60 true thermal imager, visual camera, plus coaxial laser

Built with dual visual and visual/thermal (MSX) cameras combined with an IR Thermometer, the Extech IRC130 provides a whole picture of what the eye can’t see. Quickly locate potential issues using the unique coaxial distance-to-spot guidance laser. Store up to 50,000 JPEG files and easily transfer them via USB interface. Providing fast and accurate temperature measurements up to 1202°F (650°C), the IRC130 is a must-have diagnostic tool!

Additional Features

Bright LED flashlight
Standard UNC 1/4"-20 accessory mount
Rugged design with dust and water protection (IP54 rating) and 2-meter drop tested
Adjustable Auto Power Off (APO) timer
Low battery indicator

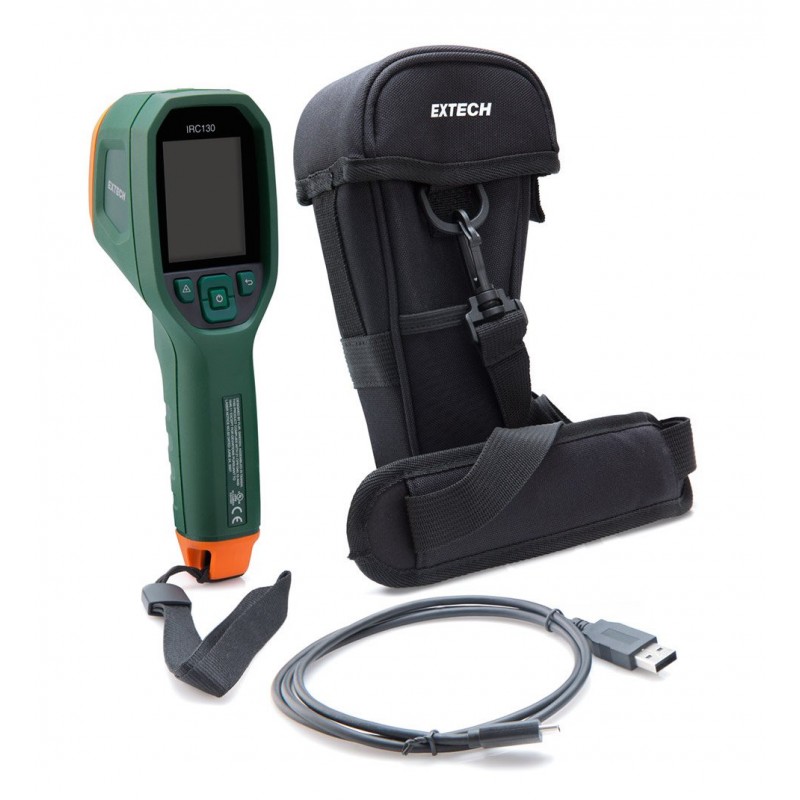

In The Box
Thermal Scanner
USB cable
Lanyard
Pouch with convenient belt loop and shoulder strap

Specifications
Description	Thermal Imager IR Thermometer with MSX
Temperature range	-13 to 1202°F (-25 to 650°C)
Basic accuracy	±1% of reading or ±1°C (2°F), whichever is greater
Image storage capacity	50,000 JPEG images (with spot temperature metadata tag)
Emissivity	0.10 to 0.99 (adjustable) and 3 presets
Response time	150 ms
IR Resolution	80 x 60 (4800 pixels)
Digital Camera Resolution	2 MP (megapixels)
Thermal Sensitivity /NETD	< 70 mK
Field of View (FOV)	51° x 66 (H x W)°
Minimum focus distance	0.3 m (0.89 ft.)
Distance to Target	30:1
Dual range operation	Range 1: < 752°F (400°C); Range 2: > 752°F (400°C) - For Range 2, the high temperature lever must be engaged
Focus	Fixed
Image frequency	8.7 Hz
Focal plane array/Spectral response range	Uncooled microbolometer/7.5 ~ 14 μm
Display resolution	320 x 240 pixels
Screen size	2.4" (61 mm) - portrait
Viewing angle	80°
Display type	TFT technology
Image modes	Visual and Visual/Thermal MSX (Multi-Spectral Dynamic) images
Color display palettes	Iron, Rainbow, White-hot, Black-hot, Arctic, and Lava
Image gallery	Yes
IP rating	IP54 (IEC 60529)
Drop tested	~6.5 ft (2 m)
Accessory mount	UNC 1/4"-20
Power	Internal rechargeable battery (3.6 V Lithium Ion)
Dimensions/Weight	8.3 x 2.5 x 3.2" (210 x 64 x 81 mm)/13.9 oz (394 g)
