Columbus P-10 Pro Professional HD GNSS Data Logger

More Views

Columbus P-10 Pro Professional HD GNSS Data Logger

Availability: In stock

Only 1 left

৳41,000.00

Quick Overview

GNSS stands for Global Navigation Satellite System. P-10 Pro supports multi-constellation in the world: GPS L1 and L5; GLONASS L1; Galileo E1 and E5a; BeiDou B1; QZSS L1 and L5; IRNSS L5. Compared with the single-constellation GPS positioning system, the GNSS multi-constellation positioning system can ensure rapid and effective positioning at any location in the world, while improving positioning accuracy and reliability.

Qty:

Be the first to review this product

Email to a Friend

Specifications:

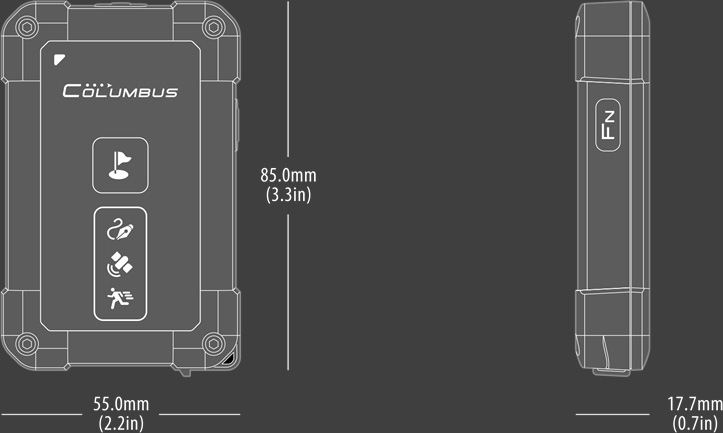

Size & Weight

Ingress Protection*

IP66

* The rubber connector cover must be fully covered. P-10 Pro can work normally in rain, snow and high dust environments. Do not immerse P-10 Pro in water.

Operating Temperature

-10°C to 50°C / 14°F to 122°F

GNSS Performance

1575.42Mhz (L1, C/A code)
1176.45Mhz (L5)
GPS (L1+L5), GLONASS(L1), Galileo (E1+E5a), QZSS (L1+L5), BeiDou(B1), IRNSS (L5), SBAS
Built-in dual active antennas

Positioning Ability*

Cold start: <34 seconds
Warm start: <30 seconds
Hot start : <2 seconds
Horizontal position accuracy: 0.5m/CEP(50%), 1.5m/CEP(95%)
Vertical position accuracy: ±15m

* Support "EPS Pro" technology. 1Hz log mode. Data from testing in ideal open environments.

Storage Card

MicroSD, MicroSDHC, MicroSDXC
FAT16, FAT32 file format

Logging Data

Geodesics WGS-84
Type of track point
Date, Time
HDOP, Satellite view / used
Latitude: (0.0000001 degree)
Longitude: (0.0000001 degree)
Altitude: -1,000 ~ 18,000 meters -3280 ~ 59000 ft (1 meters / 3ft)
Speed: 0 ~ 1,850 km/h; 0~1180 mi/h (0.1km / 0.1mi)
Heading: 0 ~ 359 (1 degree)

Log Mode

By frequency, 1Hz (default), 5Hz; By distance.

Track Points Amount*

1. CSV (plain code format): 550 Million points
2. GPX (common exchange format): 300 Million points
3. NMEA (NMEA-0183): 200 Million points

* Use 32GB MicroSD. Track points amount is an approximate value and may slightly vary from different conditions.

Dependability*

Better than 99.998%*

* Based on our test results. Track points are lost at a probability of less than 0.002%, or no more than 1 out of every 50,000 records.

Power and Battery

Built-in 2000mAh rechargeable lithium-polymer battery
Normal Mode*: 50 hours
Spy Tracking Mode: Approx 12 days (2 minutes interval); Approx 17 days (5 minutes interval); Approx 20 days (10 minutes interval); Approx 24 days (20 minutes interval)
Charging time: Approx 3.5 hours
Power supplies: DC 5V 800mA

* Continuous logging at 1Hz and 20°C environmental temperature.

System Requirements

Internet access
Mac: OS X v10.7 or later
PC: Windows 7 or later
Linux: 2.6.12 or later

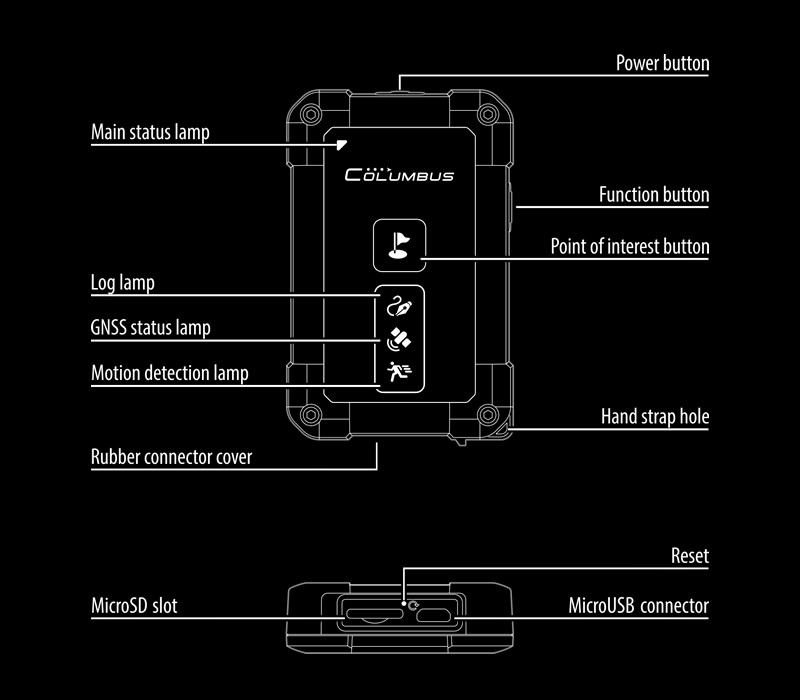

Parts Description
