Key Specifications:

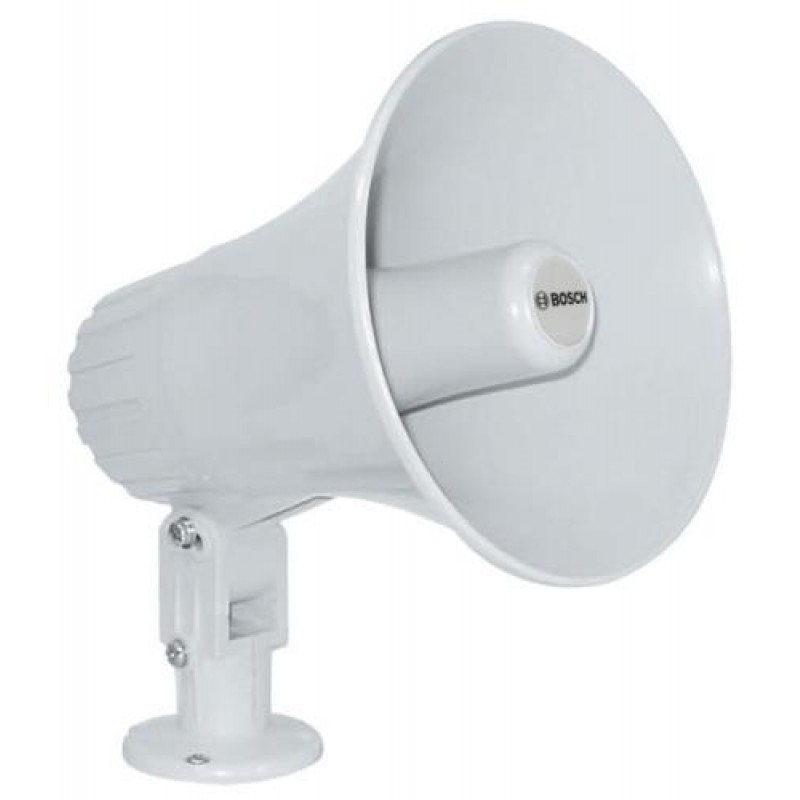

The LBC 3470/00 is a 15 W high‑efficiency circular horn loudspeaker, provide excellent speech repro- duction and sound distribution for a wide scope ofindoor and outdoor applications. It is ideal for sports grounds, parks, exhibition areas, factories
and swimming pools.
The horn is made from ABS and finished in light
gray (RAL 7035)
| Maximum power | 22.5 W |
| Rated power (PHC) | 15 W |
| Power tapping | 15 / 7.5 / 3.75 W |
| Sound pressure levelat 15 W / 1 W (1 kHz, 1 m) | 115 / 103 dB (SPL) |
| Effective frequency range(- 10 dB) | 500 Hz to 5 kHz |
| Opening angleat 1 kHz / 4 kHz (‑6 dB) | 130°/ 50° |
| Rated input voltage | 100 V |
| Rated impedance | 667 Ohm |
| Connection |
4‑wire cable. Lenght: 500 mm (19.68 in) |
| Dimensions (H x W x D) | 235 x 190 x 225 mm(9.25 x 7.48 x 8.85 in) |
| Weight | 1.5 kg (3.30 lb) |
| Color | Light gray (RAL 7035) |
| Material (horn / rear cover) | ABS |
| Operating temperature | -25 ºC to +55 ºC (-13 ºF to +131 ºF) |
| Storage temperature | -40 ºC to +70 ºC (-40 ºF to +158 ºF) |
| Relative humidity | <95% |
.
| Manufacturer | No |
|---|
