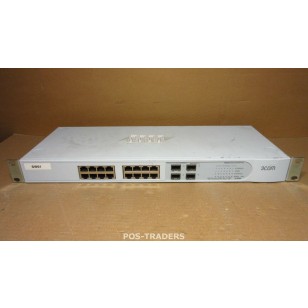

3Com Baseline Switch 2800-SFP Plus

Availability: In stock

Only 4 left

৳21,000.00

Quick Overview

The 3Com Baseline Switch SFP Plus Family are “smart” cost-effectiveLayer 2 10/100 and 10/100/1000 Ethernet switches. These 16-, 24- and48-port switches provide a user-friendly web browser interface forswitch configuration and administration. With a low entry cost, theyoffer advanced features such as link aggregation, IEEE 802.1p class ofservice (CoS) traffic prioritization, and VLANs for greater scalability andsupport for business-critical applications - such as customer relationmanagement (CRM), supply chain management (SCM) and video.

OR

Product features

FeatureDescription
Smart browser-based user interface
The easy-to-use web-based interface allows even novice users to quicklyand confidently configure the switch during initial setup or normaloperation. In addition, the web interface features individual port-trafficmonitoring (port mirroring) and unique, quick-glance switch statusmonitoring. A new cable diagnostic tool lets users troubleshoot basicconnectivity cabling problems via the web management interface furthersimplifying network installation.
Wirespeed switching
These switches have non-blocking performance—all ports perform atwirespeed which helps to eliminate network traffic bottlenecks. Linkaggregation allows administrators to group any number of copper orfiber ports together to form an ultra-high bandwidth pipe that greatlyexpands bandwidth capacity to the network backbone. The switch alsosupports 802.1p for traffic prioritization and priority queuing, andVLANs, which segment the network by grouping users based on data ortraffic exchange requirements. These switching features ensure optimaluse of available bandwidth as traffic flow is directed according to theneeds of the business.
Enterprise-class quality and reliability without complexity
These Baseline switches are operational straight out-of-the-box; as longas basic settings are acceptable, there is no need to configure the switch.For networks that require more control, the user-friendly web-basedinterface provides easy-to-use tools to design a network for optimal use.These switches have a Three Year Limited Hardware Warranty. AdvancedHardware Replacement, with Next Business Day shipment in mostregions, is also provided.

Specifications

Connectors and performance specifications

FeatureSwitch 2816-SFP PlusSwitch 2824-SFP PlusSwitch 2848-SFP Plus
Connectors
  • 16 auto-negotiating 10BASE-T/100BASE-TX/1000BASE-T portsconfigured as auto MDI/MDIX.

  • 4 Gigabit SFP ports, dual-purposedwith 4 of the above 10/100/1000 ports(configurable as 10/100/1000 or SFP).

  • 24 auto-negotiating 10BASE-T/100BASE-TX/1000BASE-T portsconfigured as auto MDI/MDIX.

  • 4 Gigabit SFP ports, dual-purposedwith 4 of the above 10/100/1000 ports(configurable as 10/100/1000 or SFP).

  • 48 auto-negotiating 10BASE-T/100BASE-TX/1000BASE-T portsconfigured as auto MDI/MDIX.

  • 4 Gigabit SFP ports, dual-purposedwith 4 of the above 10/100/1000 ports(configurable as 10/100/1000 or SFP).

Performance
  • 32 Gb/s switching capacity, max.

  • 23.7 Mp/s forwarding rate, max.

  • 48 Gb/s switching capacity, max.

  • 35.5 Mp/s forwarding rate, max.

  • 96 Gb/s switching capacity, max

  • 71.4 Mp/s forwarding rate, max.

Layer 2 switching and convergence

FeatureDescription
Layer 2 switching
  • 8,192 MAC addresses in address table

  • 64 port-based VLANs (IEEE 802.1Q)

  • Manual link aggregation: 4 trunks,max. 8 ports per trunk, max. (Switch2816-SFP and 2824-SFP) 6 trunks,max. 8 ports per trunk, max. (Switch2848-SFP).

  • Auto-negotiation of port speed andduplex.

  • IEEE 802.3x full-duplex flow control.

  • IEEE 802.1D Spanning Tree Protocol(STP).

Convergence
  • 4 hardware queues per port.

  • Weighted Round Robin (WRR) queuing.

  • IEEE 802.1p Class of Service/Qualityof Service (CoS/QoS) on egress.

Management and LED indicators

FeatureDescription
Management
Web-based configuration for:
  • Port speed and duplex configuration.

  • Spanning tree.

  • VLANs

  • Link aggregation.

  • Traffic monitoring.

  • Broadcast storm control.

LED indicators
Link status/speed, module active,duplex status, power.

Power specifications

FeatureDescription
AC line frequency
50/60 Hz
Input voltage
100-240 V ac
Current rating
1 A(max)
Power consumption (max)
60 W(max)
Power dissipation
184.3 BTU/hr(max)
Power inlet
IEC 320

Physical specifications

FeatureSwitch 2816-SFP PlusSwitch 2824-SFP PlusSwitch 2848-SFP Plus
Dimensions (H x W x D)
4.4 x 44 x 17.3 cm(1.7 x 17.32 x 6.8 in)
4.4 x 44 x 16 cm(1.7 x 17.32 x 6.8 in)
4.4 x 44 x 23.8 cm(1.7 x 17.32 x 9.4 in)
Weight
1.83 kg (4.03 lb)
1.89 kg (4.17 lb)
2.54 kg (5.6 lb)

Enviorment specifications

FeatureDescription
Operating temperature
0° to 40°C (32° to 122°F)
Operating humidity
10% to 90% relative humidity noncondensing.
Standards: EN60068 (IEC68).
Manufacturer No
