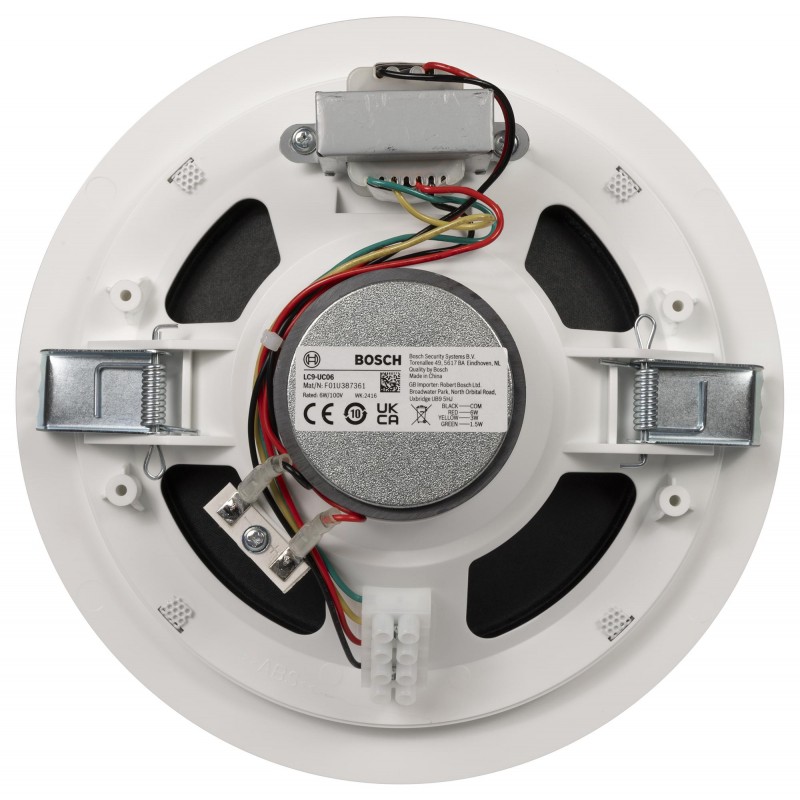

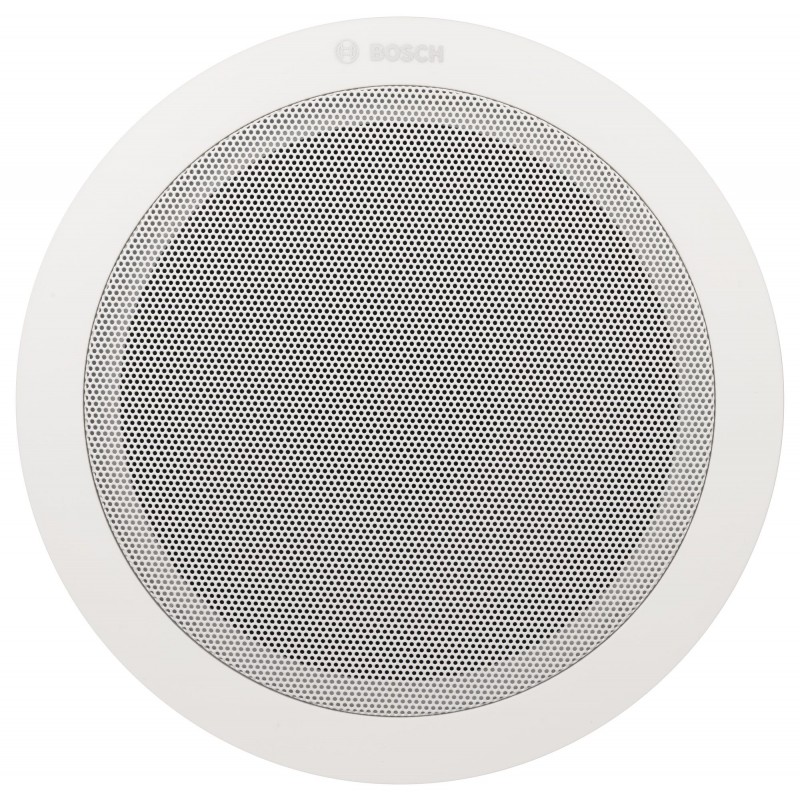

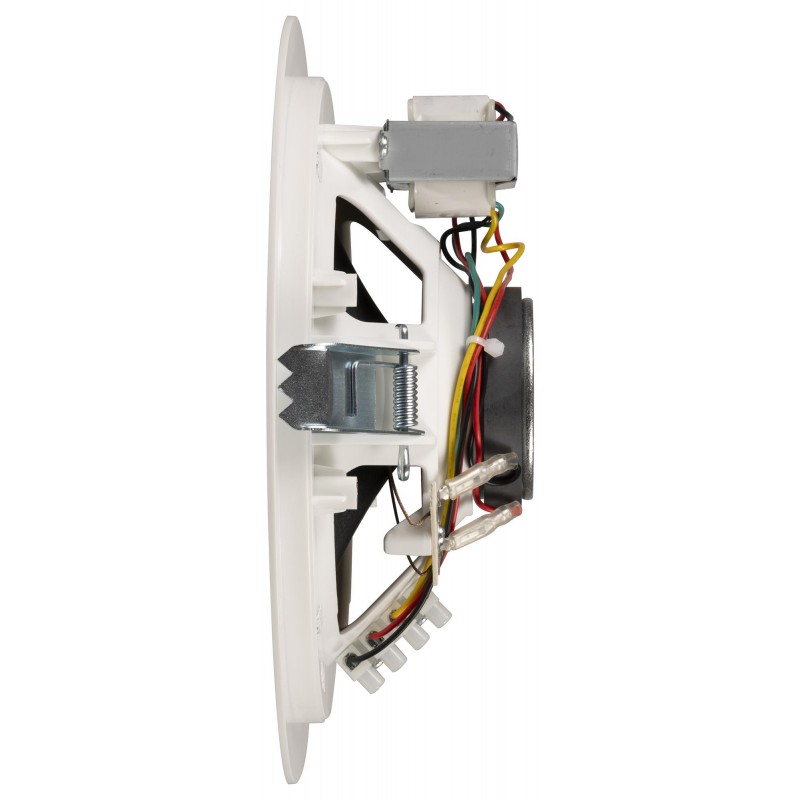

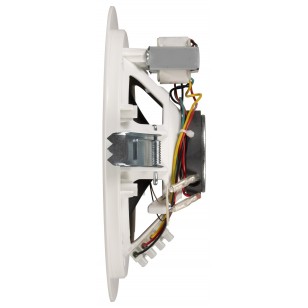

The LC9-UC06 is compact, 6W, general-purpose, cost-effective ceiling mount loudspeakers with a perforated metal grille. it is designed for a wide range of applications and have an excellent speech and music performance. The loudspeakers are easy to install thanks to their integral mounting clips. The LC9-UC06 has a perforated metal grille with a plastic surround, finished in an attractive white RAL 9003 colour. The loudspeaker features a very wide opening angle, which means fewer units are required to cover a given area. The wide frequency range means better speech and better music reproduction. The unit is supplied with a 100V matching transformer with taps on the primary winding for full-power, half-power, and quarter-power radiation.
- Power handling: 6W
- Rated Frequency Range (-10 dB): 80 Hz - 20 kHz
- Frequency Response (Peak -20 dB): 65 Hz - 20 kHz
- Sensitivity (SPL 1 W/1 m): 92 dB
- Max SPL (SPL 6 W/1 m): 100 dB
- Coverage Pattern @ 1 kHz/4 kHz (-6dB): 180° / 70°
- Rated Impedance: 1667 Ω@6 W, 3333 Ω@3 W and 6667 Ω@1.5 W
- Input Configuration: 100V
- Transformer Taps: 6W, 3W and 1.5W
- Dimensions (Diameter x Height): 204 x 70 mm
- Weight: 0.6kg
| Manufacturer | No |
|---|
