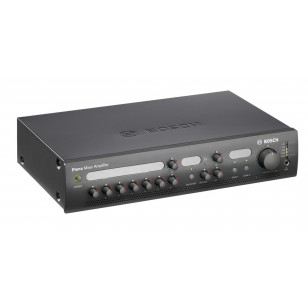

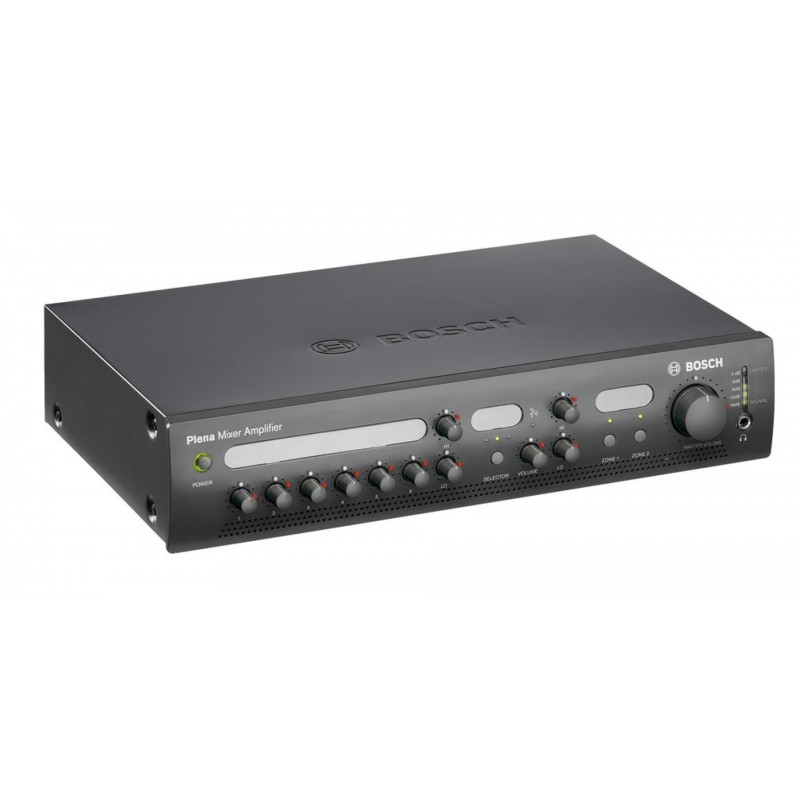

The Bosch Plena PLE-2MA120 is a highly versatile 120 watt 2 zone mixer amp with a total of 9 inputs, suitable for 100 volt line commercial audio systems as well as low impedance sound systems using 8 ohm loudspeakers.
Easy to use, with simple zone labels included in the box as well as setting indicators which enable the installer to place coloured markers on the volume and tone controls to indicate optimum and maximum recommended volume settings.
An integral 24 VDC battery charger trickle charges a 24 VDV backup battery (available separately) which could then power the amplifier in the event of a mains failure.
Despite its simplicity, the PLE 2MA120 still has flexible features such as ducking, priority paging and voice activated emergency override.
|
Mains power supply |
|
|
Voltage |
115 - 230 VAC ±10%, 50/60 Hz |
|
Inrush current |
8/16 A (230/115 VAC) |
|
Power consumption |
400 VA |
|
Battery power supply |
|
|
Voltage |
24 VDC, +10% / -15% |
|
Current / Charge Current |
6A / 0.5 ADC |
|
Charge Float Voltage |
27.3 VDC |
|
Performance |
|
|
Frequency response |
50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output) |
|
Distortion |
<1% @ rated output power, 1 kHz |
|
Bass Control Treble Control |
Max -12/+12 dB (frequency is setting dependent) Max -12/+12 dB (frequency is setting dependent) |
|
Input Ports |
|
|
RJ-45 input |
2 x |
|
1 x Wall panel input & 1 x Call Station Input |
For PLE-2CS(MM) & PLE‑WP3S2Z |
|
Mic / Line Input |
|
|
Input 1 (Push-to-talk contact with ducking functionality) |
5-pin Euro style, balanced, phantom 3-pin XLR, balanced, phantom |
|
Input 2-6 (VOX with ducking functionality on input 2) |
3-pin XLR, balanced, phantom |
|
Phantom power supply |
16 V via 1.2 kohm (mic) |
|
Music Inputs x 3 |
Cinch, stereo converted to mono |
|
Emergency / telephone x 1 |
7-pin, Euro style pluggable screw terminal |
|
Insert 1 x |
Cinch |
|
Master/music output x 1 |
3-pin XLR, balanced |
|
Loudspeaker output 100 V |
Screw, floating |
|
Max / rated PLE-2MA120-EU |
180 W / 120 W |
|
Loudspeaker output 8 ohm |
Euro style pluggable screw terminal, floating |
|
PLE-2MA120-EU |
31 V (120 W) |
|
Physical |
|
|
Dimensions (H x W x D) |
100 x 430 x 270 mm (19" wide, 2U high) |
|
Mounting |
Stand-alone, 19" rack |
|
Color |
Charcoal |
|
Weight |
Approx. 10.5 kg |
