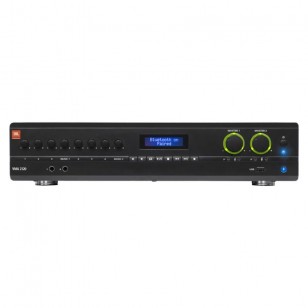

JBL Mixer Amplifier VMA 2120 with Bluetooth 120W

More Views

JBL Mixer Amplifier VMA 2120 with Bluetooth 120W

Availability: In stock

Only 3 left

৳69,500.00

Quick Overview

• 8 inputs with 2 outputs of 60 or 120-watts of power
• Independent bass and treble controls for each output channel
• 100V and 70V output, or 4Ω/8Ω
• Paging Chime, and Priority muting
• Works with JBL CSR-V wall controllers
• Balanced mic/line inputs; RCA (.775V) inputs
• Rack mounting hardware included

Please Call For Updated Price & Availability: 01611522742

Qty:

Be the first to review this product

Email to a Friend

JBL VMA2120 Commercial Series 60/120W Bluetooth-Enabled Mixer/Amplifier

JBL VMA2120 Commercial Series 60/120W Bluetooth-Enabled Mixer/Amplifier. The JBL VMA Series is a cost-effective line of Mixer/Amplifiers with low impedance functionality (4Ω, 8Ω) and high impedance 70V and 100V output. They are designed with convenient and flexible features to be used by commercial integrators worldwide, ideal for emerging markets.

Features

8 inputs with 2 outputs of 60 or 120-watts of power
Independent bass and treble controls for each output channel
100V and 70V output, or 4Ω/8Ω
Paging Chime, and Priority muting
Works with JBL CSR-V wall controllers
Balanced mic/line inputs; RCA (.775V) inputs
Rack mounting hardware included

Specifications

Brand	JBL
Model	VMA2120
Max Output Power per Channel	into 4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD – VMA260: 60W VMA2120: 120W
Insertion Loss	(70V & 100V outputs) 1dB maximum
Number of Inputs	8
Number of Outputs	2
Tone Controls	(Bass and Treble non-detented potentiometers on each channel) Bass +/-14dB @ 50Hz; Treble +/-14dB @10kHz
Input Sensitivity	(to obtain full rated power into 8 Ω load) Mic Input: 5.5mVRMS Line Input: 1.3VRMS RCA Input (stereo in): 130mVRMS
Frequency Response	(measured at 2.83VRMS into rated load impedance at any output) 4/8 Ω Output: 20Hz – 20kHz, +/-2dB; 70V/100V Outputs: 80Hz – 15kHz +/-3dB
Total Harmonic Distortion (THD)	(measured at 2.83VRMS into rated load impedance at any output) Power Amp Output: <0.5%, 20Hz – 20kHz
Signal to Noise Ratio	(Ref. Rated Power, mixer levels @ min., master volume @ max. A-weighted) >76dB
Input Impedance	(nominal) Mic: 400 Ω Line: 20 kΩ (balanced) RCA: 50 kΩ
Phantom Power	27VDC
Crosstalk	(reference rated power, volume at mid-position, 1kHz) -70 dB
Nominal AC Line Voltages	100V, 120V, 220V, 220-240V, 50/60 Hz
Minimum Load Impedance	(Low Impedance Output, 70V Output, 100V Output) VMA260: 4 Ω, 80 Ω,160 Ω VMA2120: 4 Ω, 40 Ω, 80 Ω
Operating Temperature/Humidity	0°C to 35°C @ 95% R.H. (non-condensing)
Storage Temperature	-20°C to 85°C
Net Weight	VMA260: 25.5 lb (11.6 kg) VMA2120: 29.3 lb (13.3 kg)
Dimensions	Width: 17.0 in. (432 mm) Depth: 16.3 in. (415 mm) Height: 3.5 in. (88 mm)
