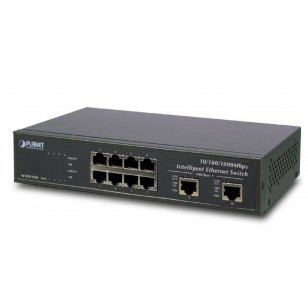

Planet Gigabit Managed Switch (WGSD-1020)

Availability: In stock

Only 2 left


Quick Overview

⚫ 8 (10/100 Mbps), 2 (10/100/1000Mbps) Ethernet Switch.
⚫ 10Base-T/100Base-TX ports provide auto-negotiation for speed and duplex mode selection.
⚫ Gigabit Ethernet Port supports 10Base-T, 100Base-TX, and 1000Base-T for 10/100/1000Mbps bandwidth.
⚫ Per port MDI /MDI-X auto-detection, use of straight cable for either PC connection or Hub/Switch cascade.
⚫ Prevents packet loss with back pressure (half-duplex) and 802.3x flow control (full-duplex).
⚫ High performance Store and forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth.
⚫ 8 K MAC address table, automatic source address learning and ageing.
⚫ 2 Mbit shared data memory buffering.
⚫ Full SNMP management, including RMON, port trunking, port mirroring, IGMP, QoS, VLAN and spanning tree.
⚫ 10-inch rack mount design, 19-inch rack-mountable.

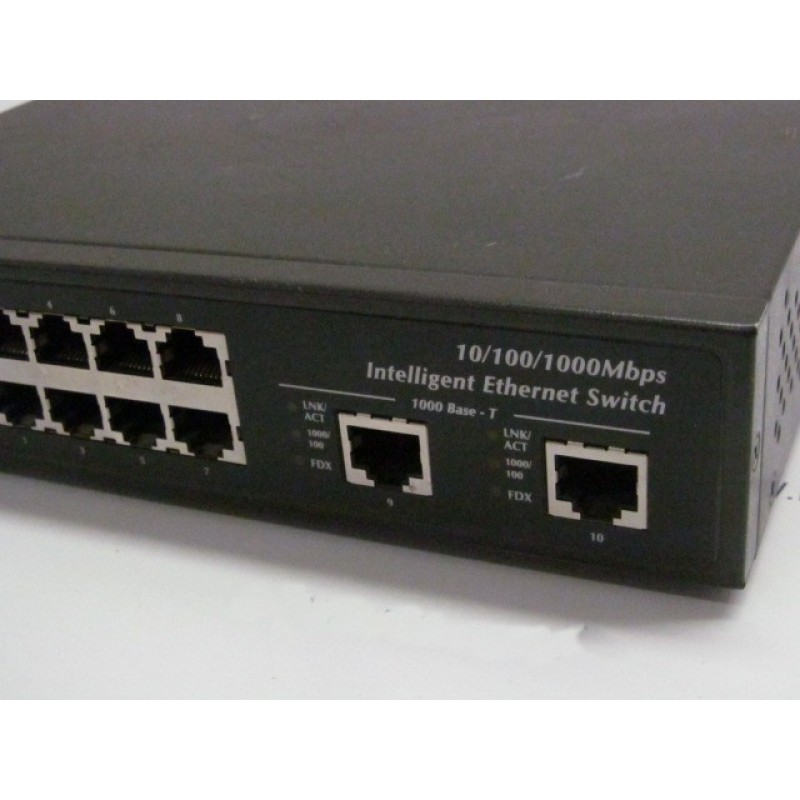

The WGSD-1020's two (2) Gigabit copper interfaces run at all speeds from 10Mbps up to 1000Mbps, providing up to ten times Fast Ethernet speed without requiring new wiring. IEEE802.3x, full-duplex flow control eliminates packet loss in heavy traffic conditions, and eight (8) 10/100Mbps ports with auto-MDI/MDI-X detection provide ease of connectivity regardless of the type of device connected. In addition, the WGSD-1020 also supports 2 Ethernet Gigabit ports to uplink to a server or network backbone. The WGSD-1020 is designed for Plug and Play installation, allows the network administrator to simply connect the network and power cables and the Switching/bridging functions begin automatically. An 8K MAC address table, 2 Megabit shared buffer, plus wire-speed forwarding, runt and CRC filtering helps to process packets efficiently even in heavy traffic. The managed WGSD-1020 features Web and SNMP management capability to allow management across the network. Functions such as VLAN, QoS, RMON, Port Trunking, Port Mirroring, Spanning Tree, IGMP and more no longer require a 19-inch switch, bringing true enterprise class management ability to desktop switching.


Product: 8-port + 2 Gigabit-ports Managed Switch
Model: WGSD-1020
Ports:  8 10/100Base-TX RJ-45 MDI/MDI-X ports
             2 10/100/1000Base-T RJ-45 MDI/MDI-X port
             1 DB-9 RS-232
Dimensions: 217 x 135 x 43 mm
                       1U height, 10-inch rack
Weight: 1 kg
Power Requirement: 100~240 (+10%) VAC, 50/60 (+3) Hz
Power Consumption / Dissipation: 17 Watts maximum / 58BTU/hr
Maximum Current: (@240VAC) 65/70mA maximum
Switch Processing Scheme: Store-and-forward
Address Table: 8K entries, auto learning/ageing
Queue Buffer: 2Mbit shared
Flow Control: Back pressure for half duplex, IEEE 802.3x for full duplex
Packet Control: Runt & CRC filtering
Management Interface: SNMP, Web, Telnet and console
Protocol and Standards IEEE RFC:
                        IEEE 802.3 (Ethernet) RFC 783 TFTP
                        IEEE 802.3u (Fast Ethernet) RFC 791 IP
                        IEEE 802.3ab (Gigabit Ethernet) RFC 792 ICMP
                        IEEE 802.3x (flow control) RFC 854 Telnet
                        IEEE 802.1d Spanning Tree RFC 1157 SNMP
                        IEEE 802.1Q VLANIEEE 802.1p dual priority PRFC 1213 MIB II
                        IEEE 802.3ad port trunking (with LACP) RFC 1757 RMON (group 1, 2, 3, 9)
                        RFC 2068 HTTP
CE Mark:   EN50081-1, EN55022 Class A;
                 EN50082-1, IEC 1000-4-2/3/4/6
Emissions: FCC Class A, CISPR 22 Class A
Safety: CSA/NRTL (C.22.2.950,UL1950), TUV/GS (EN60950)
Immunity: EN55024, EN61000-3-2/3/4
Temperature: IEC 68-2-14, Standard Operating: 0~50oC (32~122oF),
Storage: -40~70oC (-40~158oF)
Humidity: 5% to 95% (Non-condensing)

Manufacturer No
