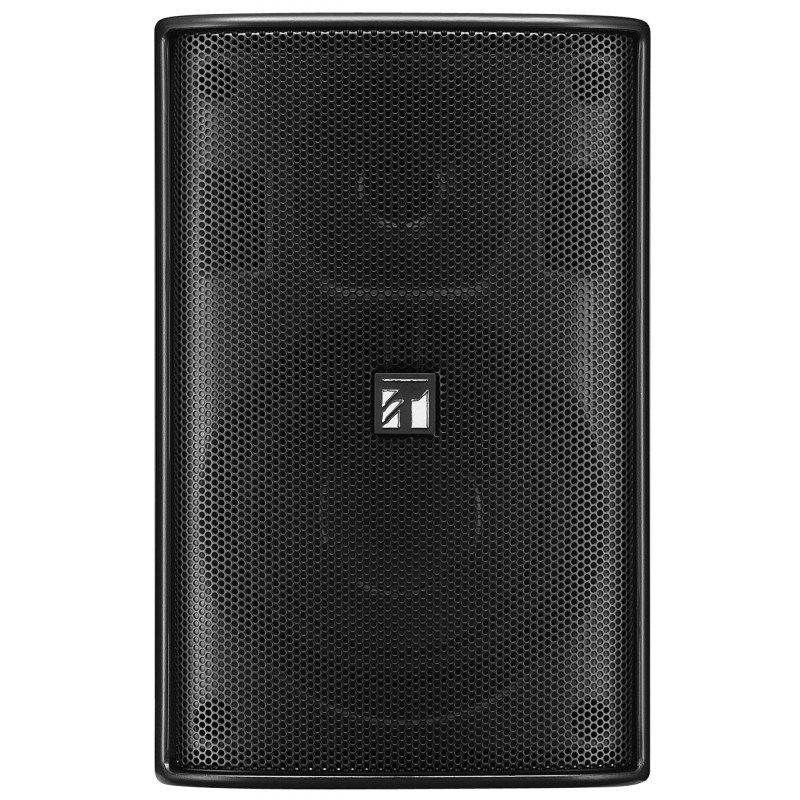

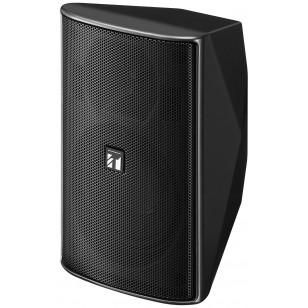

The F-1000 Series Speaker are compact two-way speaker systems designed for high efficiency, wide range, and high power input handling capability. These speaker systems can be installed in a manner ideal for the location and intended application.
Features:
Low and high impedance speaker
Up to 90 W continuous program (low impedance)

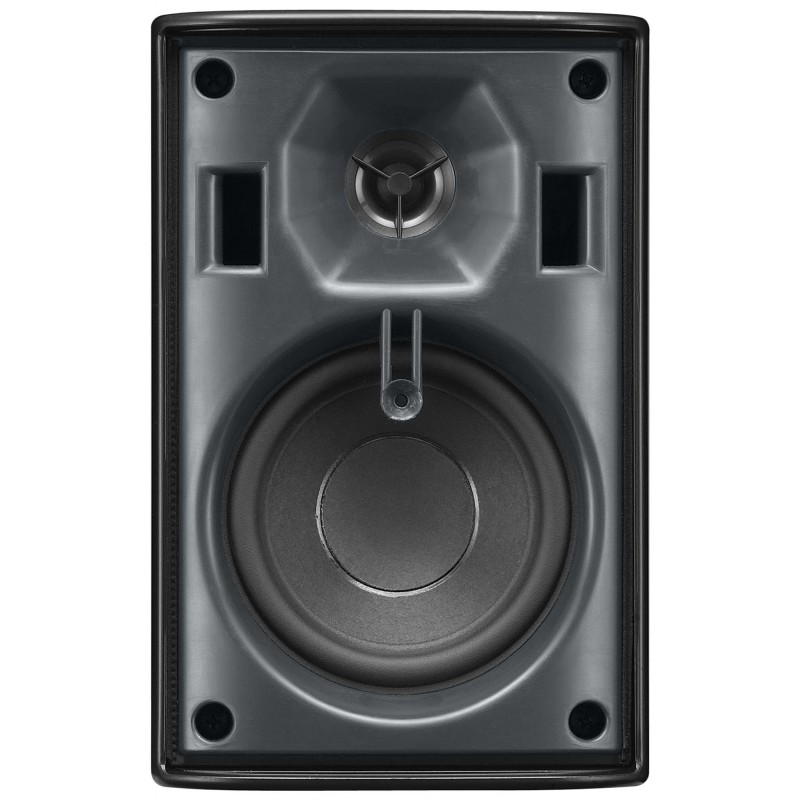

2-way speaker with high quality 10 cm woofer and balanced dome tweeter
Dispersion angle of 90° x 90°
Pan-tilt wall/ceiling bracket included
Paintable
Enclosure: Bass-reflex type
Rated Input: 15 W (high impedance)
Power Handling:
Continuos pink noise: 30 W (low impedance)
Continuos program: 90 W (low impedance)
Rated Impedance:
8 Ω
100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Sensitivity:
87 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response:
85 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field
Crossover Frequency: 5 kHz
Directivity Angle: Horizontal: 90°, Vertical: 90°
Speaker Component: Low frequency: 10 cm (4) cone-type
High frequency: Balanced dome tweeter
Input Terminal: Push-in terminal
Finish:
Enclosure: HIPS, black
Punched net: Surface-treated steel plate, black, paint
Joint bracket, wall bracket: Steel plate, t1.6, black, paint
Speaker bracket: Die-cast aluminum, black, paint
Dimensions:
130 (W) x 202 (H) x 131 (D) mm (5.12 x 7.95" x 5.16")
Weight:
2 kg (4.41 lb) (including the supplied brackets)
Included Accessories:
Speaker bracket…1, Joint bracket…1, Wall bracket…1, Bracket fixing screw…1 set
Optional Accessories (Not Included):
Board hanger bracket: HY-BH10B,
Ceiling mount bracket: HY-CM10B (used for the horizontal speaker mounting),
Cluster bracket: HY-CL10B, Speaker stand: ST-16A
