BOSE Professional FreeSpace FS2C 16W Passive Ceiling Loudspeaker

More Views

BOSE Professional FreeSpace FS2C 16W Passive Ceiling Loudspeaker

Availability: In stock

Only 12 left

৳22,800.00

Quick Overview

Please Call For Updated Price & Availability: 01611522742

>> 1 x 2.25" Full-Range Driver
>> 16W RMS Long-Term Power Handling
>> 150° Conical Coverage Pattern
>> Integrated Multi-Tap Transformer
>> Tap Selection via Switch under Grille
>> Shared Voicing across FreeSpace FS Range
>> Max SPL: 86 dB Continuous / 98 dB Peak
>> Integrated Steel-Formed Backcan
>> Supports Multiple Mounting Options

Qty:

Be the first to review this product

Email to a Friend

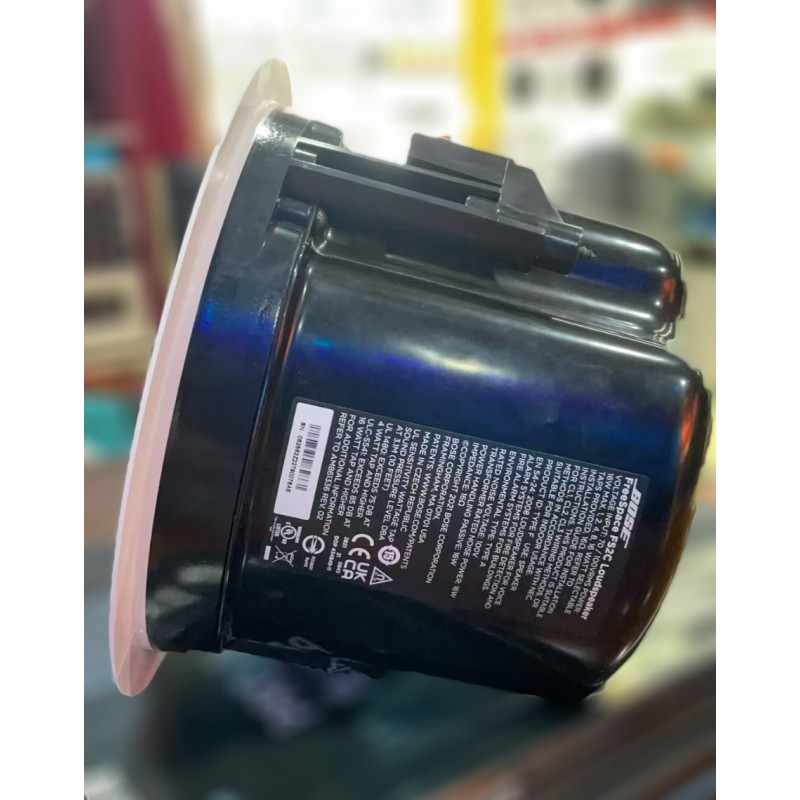

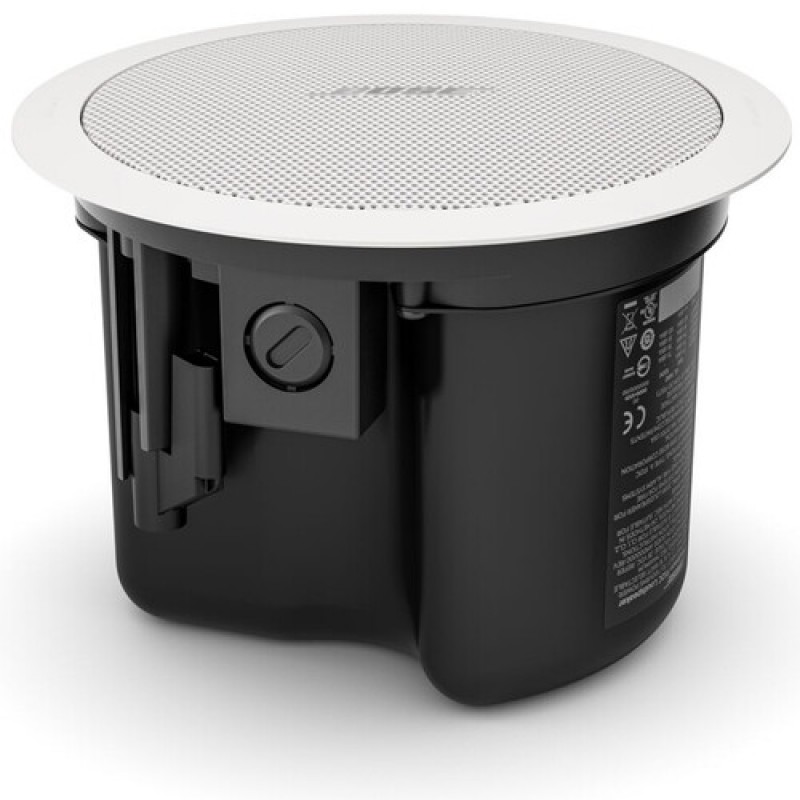

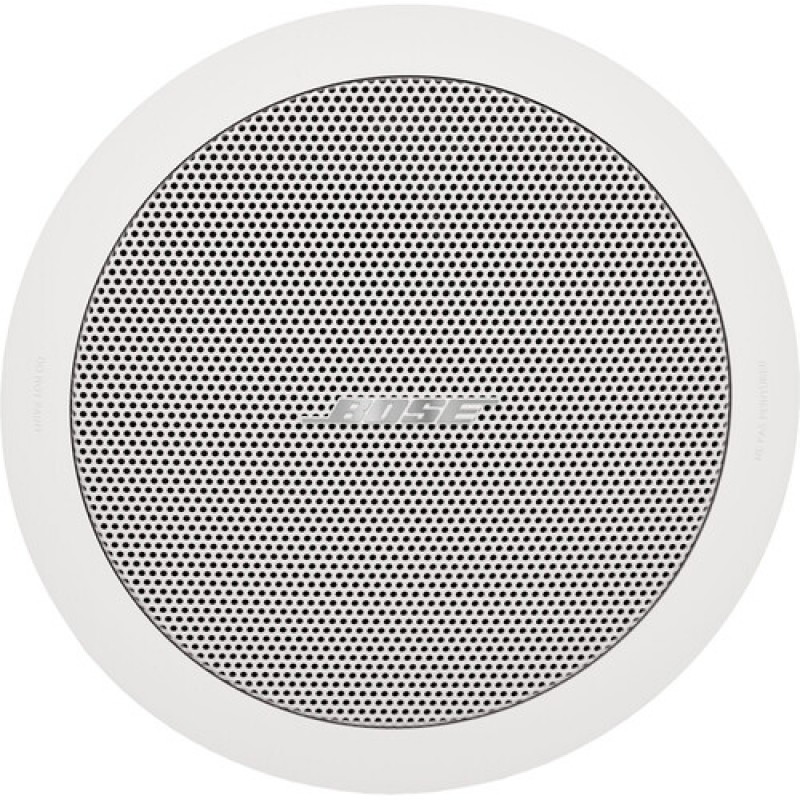

The Bose Professional FreeSpace FS2C is a pair of in-ceiling passive loudspeakers designed for intelligible speech and music reproduction in an array of commercial applications, whether installed with ceiling-, surface-, or pendant-mounted options (available separately). Equipped with an integrated steel-formed backcan and a single 2.25" full-range driver, each FS2C speaker yields a 150° conical coverage pattern and a frequency range from 83 Hz to 19 kHz.
The FS2C utilizes an integrated multi-tap transformer, which can be configured for an array of 70/100V settings via a convenient switch beneath the grille. The FS2C is voiced to ensure consistent tonality throughout the FreeSpace FS family, so it can be installed alongside other loudspeakers in the same series without compromising the system's sonic signature. Installation options (available separately) include rough-in kits, adjustable tile bridges, and retrofit kits.

Shared Voicing in FS Family

Maintain consistent tonal quality with shared voicing across all FS models

For Music and Voice Reproduction

Full-range 2.25" transducer offers clear voice reproduction and smooth response for background music with a frequency range from 83 Hz to 19 kHz (-10 dB) and broad 150° conical coverage

Customizable Installation

Supports in-ceiling, surface-mount, and pendant-mount options, allowing for tailored mix- and-match installations

Expandable Systems

DesignMax subwoofers and larger models (available separately) can expand your system design options even further

Removable Logo

Updated enclosures pair sleek aesthetics with practical features, including removable logos

Euroblock Connectivity

Euroblock 6-pin input/thru connector and front-baffle input location

Specifications:

COMPLIANCE

EN 54-24 Certified
Yes

Safety Agency Ratings
EN 54-24:2008 for Voice Alarm Systems; UL 1480(A); in compliance with UL 2043 for plenum-space installation; NFPA 70 & NFPA 72; CSA C22.1 Section 32

PHYSICAL

Colors
Black (similar to RAL 9005), white (similar to RAL 9003)

Enclosure Material
Engineered-plastics front baffle with integrated steel-formed backcan

Environmental
Indoor only, suitable for use in plenum locations

Grille
Perforated steel, powder-coated finish

Ceiling Cutout
6.3 in (160 mm)

Logo
Rotatable, removable

Suspension/Mounting
(2) mounting arms, (1) safety cable attachment point

Operating Temperature Range
0 °C to 50 °C (32 °F to 122 °F)

Product Dimensions (H×W×D)
7.2 in × 5.2 in (182 mm × 132 mm), loudspeaker diameter × depth / 5.0 in × 4.9 in (127 × 125 mm), backcan diameter × depth
