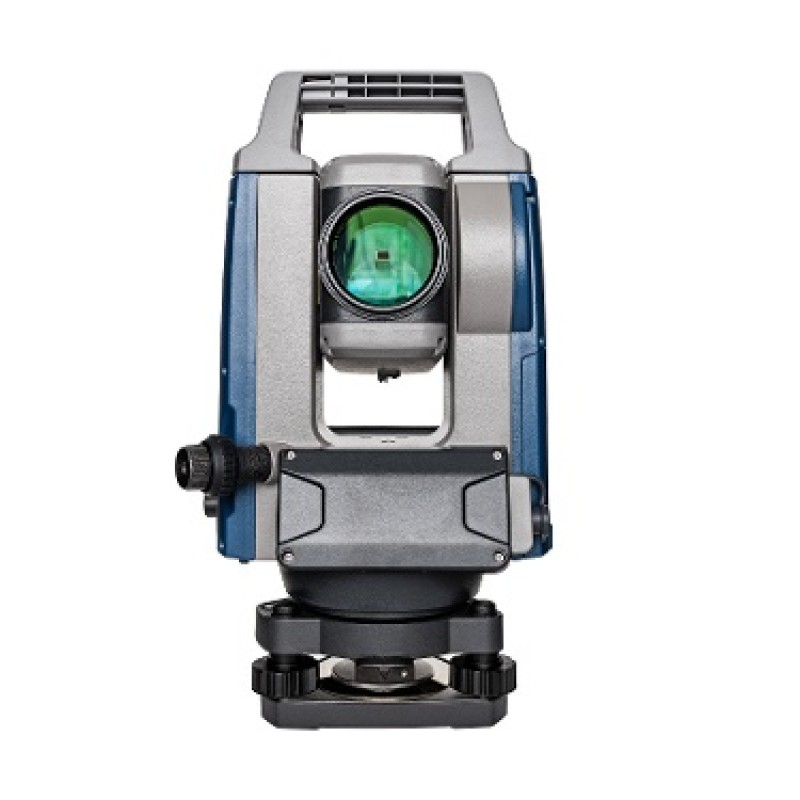

Sokkia IM 52 Total Station

Availability: In stock

Only 1 left

৳555,000.00

Quick Overview

Call For Updated Price & Quantity

Reflectorless Upto 500 meter
Optional Bluetooth connectivity
50,000-point internal memory
Magnification: 30x
Dual-axis compensation
IP66 dustproof and water resistant
Battery life up to 14 hours

Qty:

Be the first to review this product

Email to a Friend

Description

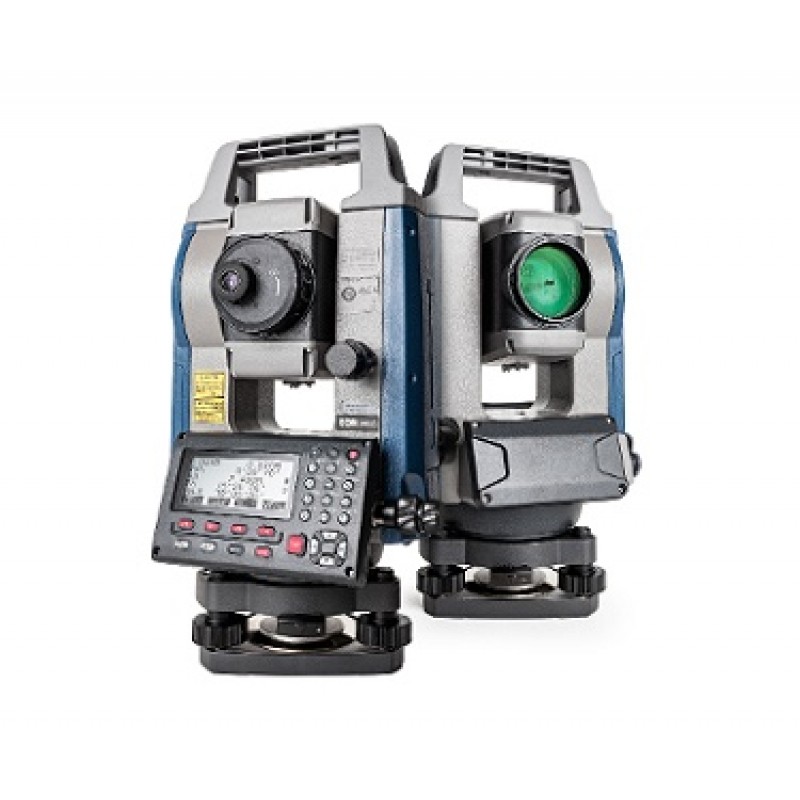

Sokkia IM52 Perfect for entry-level site layout and surveying, the Sokkia iM-50 Series Reflector-less Total Station is a smart measuring device that offers reliable and accurate results with a friendly price. The Sokkia iM-50 features a reflector less range up to 1,640 feet and up to 13,123 feet with a single prism. Featuring an advanced angle accuracy, it also comes with an integrated Bluetooth connectivity option and an internal antenna for a cable-free operation.

This Sokkia total station features a coaxial red laser with EDM beam technology and comes with a 30x magnification with 2.5-inch resolving power. It is provided with a ±6-degree range dual-axis compensation that allows reliable measurements on any terrain. Also, it includes an SDRbasic on-board software and a 50,000-point internal memory for a smooth surveying operation.

With an IP66 rating, the Sokkia iM-50 is total dust proof and water resistant. It features a graphic LCD display that has a 28-key alphanumeric keyboard with back-light. In addition, it uses a rechargeable Li-ion battery that operates up to 14 hours which is the best companion for a long work day.

Specifications:

Model		iM-52	iM-55
Telescope
Magnification / Resolving power		30x / 2.5"
Others		Length : 171mm (6.7in.), Objective aperture : 45mm (1.8in.) (48mm (1.9in.) for EDM), Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.) Reticle illumination: 5 brightness levels
Angle measurement
Minimum Display (selectable)		1"/5" (0.0002 / 0.001gon, 0.005 / 0.02mil)
Accuracy (ISO 17123-3:2001)		2"	5"
Dual-axis compensator		Dual-axis liquid tilt sensor, working range: ±6'
Collimation compensation		On/Off (selectable)
Distance measurement
Laser output*1		Reflectorless mode : Class 3R / Prism/sheet mode : Class 1
Measuring range (under average conditions*2)	Reflectorless*3	0.3 to 500m (1,640ft.)
	Reflective sheet45	RS90N-K: 1.3 to 500m (4.3 to 1,640ft.), RS50N-K: 1.3 to 300m (4.3 to 980ft.), RS10N-K: 1.3 to 100m (4.3 to 320ft.)
	Mini prisms	CP01: 1.3 to 2,500m (4.3 to 8,200ft.), OR1PA: 1.3 to 500m (4.3 to 1,640ft.)
	One prism	1.3 to 4,000m (4.3 to 13,120ft.)
Minimum Display		Fine / Rapid : 0.0001m (0.001ft. / 1/16 in.) / 0.001m (0.005ft. / 1/8 in.) (selectable) Tracking / Road : 0.001m (0.005ft. / 1/8 in.) / 0.01m (0.02ft. / 1/2 in.) (selectable)
Accuracy*2 (ISO 17123-4:2001) (D=measuring distance in mm)	Reflectorless*3	(2 + 2ppm x D) mm*6
	Reflective sheet45	(2 + 2ppm x D) mm
	Prism*7	(1.5 + 2ppm x D) mm
Measuring time*8	Fine	0.9s (initial 1.5s)
	Rapid	0.6s (initial 1.3s)
	Tracking	0.4s (initial 1.3s)
OS, Interface and Data management
Operating system		Linux
Display / Keyboard		Graphic LCD, 192 x 80 dots, backlight : on/off (Selectable) / Alphanumeric keyboard / 28 keys with backlight
Control panel location		On both faces	On single face
Data storage	Internal memory	Approx. 50,000 points
	Plug-in memory device	USB flash memory (max. 32GB)
Interface		Serial RS-232C, USB2.0 (Type A for USB flash memory)
General
Laser-pointer		Coaxial red laser using EDM beam
Levels	Graphic	6’ (Inner Circle)
	Circular level (on tribrach)	10' / 2mm
Plummet	Optical	Magnification: 3x, Minimum focus: 0.5m (19.7in.) from tribrach bottom
	Laser (option)	Red laser diode (635nm±10nm), Beam accuracy: <=1.0mm@1.3m, Class 2 laser product
Dust and water protection / Operating temperature		IP66 (IEC 60529:2001) / -20 to +60ºC (-4 to +140ºF)
Size with handle		183(W)x 181(D)x 348(H)mm (On both faces)	183(W)x 174(D)x 348(H)mm (On single face)
Instrument height		192.5mm from tribrach mounting surface
Weight with battery & tribrach		Approx. 5.1kg (11.3lb)
Power supply
Battery		Li-ion rechargeable battery BDC46C
Operating time (20ºC)*9		Approx. 14hours*10
Application program
On board		• REM Measurement • 3D Coordinate Measurement Resection • Stake Out • Topography Observation • Offset Measurement • Missing Line Measurement • Intersection Surface Area Calculation • Route Surveying • Point to Line
